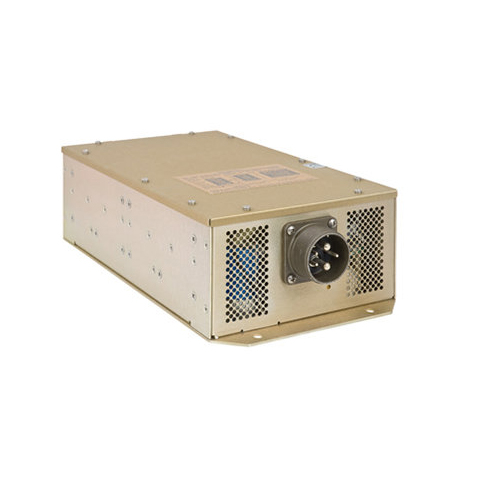

SS120 Static Inverter 1200VA | 28 VDC to 115 VAC, 60 Hz
Product Description
The SS120 is a lightweight, static inverters. This model utilizes the latest state of the art, solid state circuitry to invert a 28 VDC input to either a 115 VAC, 60 Hz or 230 VAC, 50 Hz sine wave output. Design features include a crystal controlled oscillator for output frequency stability and a pulse-width-modulated square to sine wave power conversion scheme for efficient, reliable and quiet operation.
The SS120 is designed to power laptop computers, audio/video entertainment systems, portable electronics (stereo, MP3, CD, DVD, video games, etc.), microwave ovens, coffee makers, and medical equipment in airborne, marine, and ground mobile applications.
Features
- Static inverter
- Solid state circuitry; inverts a 28 VDC input to either a 115 VAC, 60 Hz or 230 VAC, 50 Hz sine wave output
- Crystal controlled oscillator for output frequency stability
- Pulse-width-modulated square to sine wave power conversion scheme for efficient, reliable and quiet operation
Specifications
Input Voltage:
28 VDC (nominal), 20 VDC to 36.5 VDC range.
Output Wave Form:
Sine Wave/Single Phase
Harmonic Distortion:
0.5% (nominal)
Power Factor:
+0.8 to -0.8
Efficiency:
87% (nominal)
Response Time:
300 uSec (no load to full load)
Regulation:
1% Line, 1% Load. 2.5% Temperature
Overload Capacity:
110% of the rated power for 2 hrs; 150% of rated power for 5 min (minimum)
Protection Circuits:
Inverter will shutdown under the following conditions:
Input voltage > 37.5 ± 1 VDC
Input voltage < 18 ± 1.5 VDC
Internal high ambient temperature
Short circuit condition (after 2 to 15 sec) (manual reset)
Remote On-Off:
Yes
Operating Temperature:
-55°C to 71°C (-65°F to 160°F)
Altitude:
55,000 ft
Environmental Test:
DO-160C environmental category
Cooling:
Thermostatically Controlled Brushless Fan
Compliance:
FAA TSO-C73
Product Codes
- Mfr Part No:SS120B
- EDMO #:SS120B
- Brand:K G S ELECTRONICS
