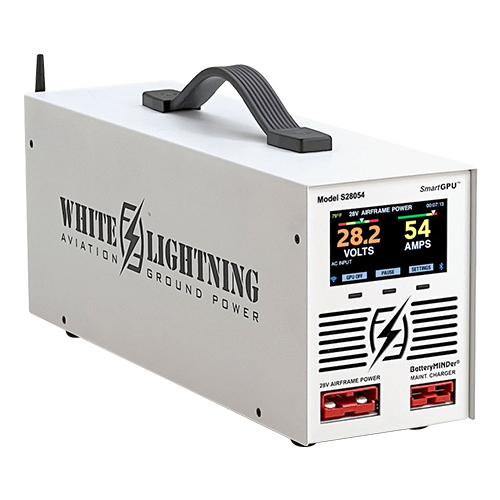

SmartGPU Ground Power Unit | 28V, 3-pin Plug

Select Amperage

WHITE LIGHTNING GPU

Call for pricing

EDMO # S28XXX

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SmartGPU is a specialized switching-mode power supply designed to provide pilots and aviation maintenance professionals with a portable, affordable source of stable, high-current, noise-free DC power that replicates the in-flight electrical environment. The GPU’s intended purpose is to energize an aircraft’s main electrical bus without using the ship’s battery or engine. It will safely provide continuous power for the most delicate electronics and airframe systems up to its full rated output. The SmartGPU mobile app allows the user to monitor the power draw from the flight deck or anywhere in the hangar.

The SmartGPU provides 28-volt DC power for:

Avionics demonstration and testing
Database and firmware updates
Flight planning and cockpit procedures training
Troubleshooting and maintenance
Powered pre-flight inspections and battery top-off charging

Features

Ground Power:
Program and customize settings on your smartphone using Bluetooth.
Use to preserve battery start capacity during pre-flight inspection, ensuring a cool start every time.
Reliable, consistent power for avionics updates, flight planning, avionics training, and cabin ventilation.
Use for aircraft maintenance and troubleshooting.
GPU Features:
Color-coded, keyed output connection to prevent accidental voltage mismatch. RED designates 24/28 volt compatibility.
Digital output meter shows voltage and amperage (load).
Programmable auto-shutdown timer.
Dual USB power ports for mobile device charging, and software updates.
QuietFiltered™ output for interference-free COM radio operation.
Auto protection/recovery from short circuit, reverse polarity, over voltage/load/temperature.
Battery Maintenance:
With Wi-Fi connectivity, remotely monitor battery condition in real time.
Maintain optimum battery condition with continuous maintenance charging.
Ability to create multiple aircraft and operator profiles complete with event logging, such as power loss/restore, charge modes and battery tests.
Remotely monitor hangar temperature with customizable trigger text alert notification, allowing the aircraft owner to be alerted to changes in the hangar environment.

Specifications

Input Voltage:

Universal 90-264 volts AC, 47-63 Hz
Input Current:

18.7A @ 115 volts AC, 17A @ 230 volts AC
Input Protection:

54A: TBD circuit breaker, cycle ON/OFF to reset 114A: 20A circuit breaker, cycle ON/OFF to reset
Output:

54A: 28.3V DC, 54 amps max continuous (trim range: 27.5 to 29.5 volts) 114A: 28.50±0.25 VDC, 114 amps max continuous @240VAC input
Output Cable (28V DC):

54A: 8 ft, 6 AWG, SB120 to 3-pin oval AN2551 (NATO) plug 114A: 8 ft, 4 AWG, SB120 to 3-pin oval AN2551 (NATO) plug
Input Cable (115V AC):

10 ft line cord with ground, rated for 20A
Input Cable (230V AC):

3 ft, 50 ft 12 gauge extension cord (L6-20R to L6-20P) (packaged/shipped separately) with AC connection pigtail (L6-20R)
Chassis Dimensions:

7.88 x 5.38 x 18.63 in (including handle and feet)
Carry Weight with AC input and aircraft output cable:

20 lb
Dimensions:

22 x 11 x 16 in
