M-Series Mini Ground Power Unit | 14V & 28V, 3-Pin Oval Plugs

Select Voltage

WHITE LIGHTNING GPU

Call For Pricing

In stock

EDMO # M1428-DV

MFR Part # M1428-DV

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

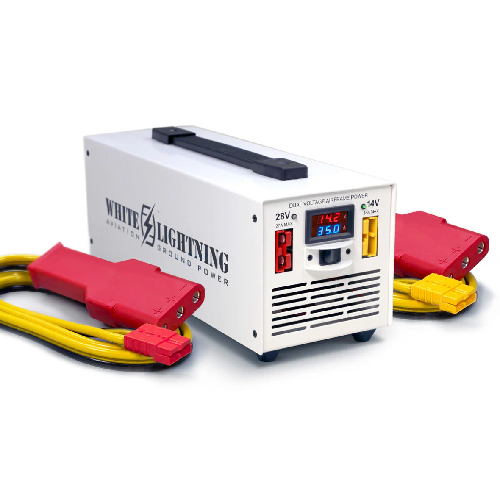

The M1428-DV Mini-GPU is a specialized switching-mode power supply designed to provide pilots and aviation maintenance professionals with a portable, affordable source of stable, high-current, noise-free DC power that replicates the in-flight electrical environment. It contains discrete outputs for either 14 or 28-volts DC, selectable by a front panel switch. It only provides one output voltage at a time, switch-selected and indicated by the front panel voltmeter display. The GPU’s intended purpose is to energize an aircraft’s main electrical bus without using the ship’s battery or engine. It will safely provide continuous power for the most delicate electronics and airframe systems up to its full rated output.

The Model M1428-DV provides 14-volt DC power for:

Avionics demonstration and testing
Database and firmware updates
Flight planning and cockpit procedures training
Troubleshooting & maintenance
Powered pre-flight inspections and battery top-off

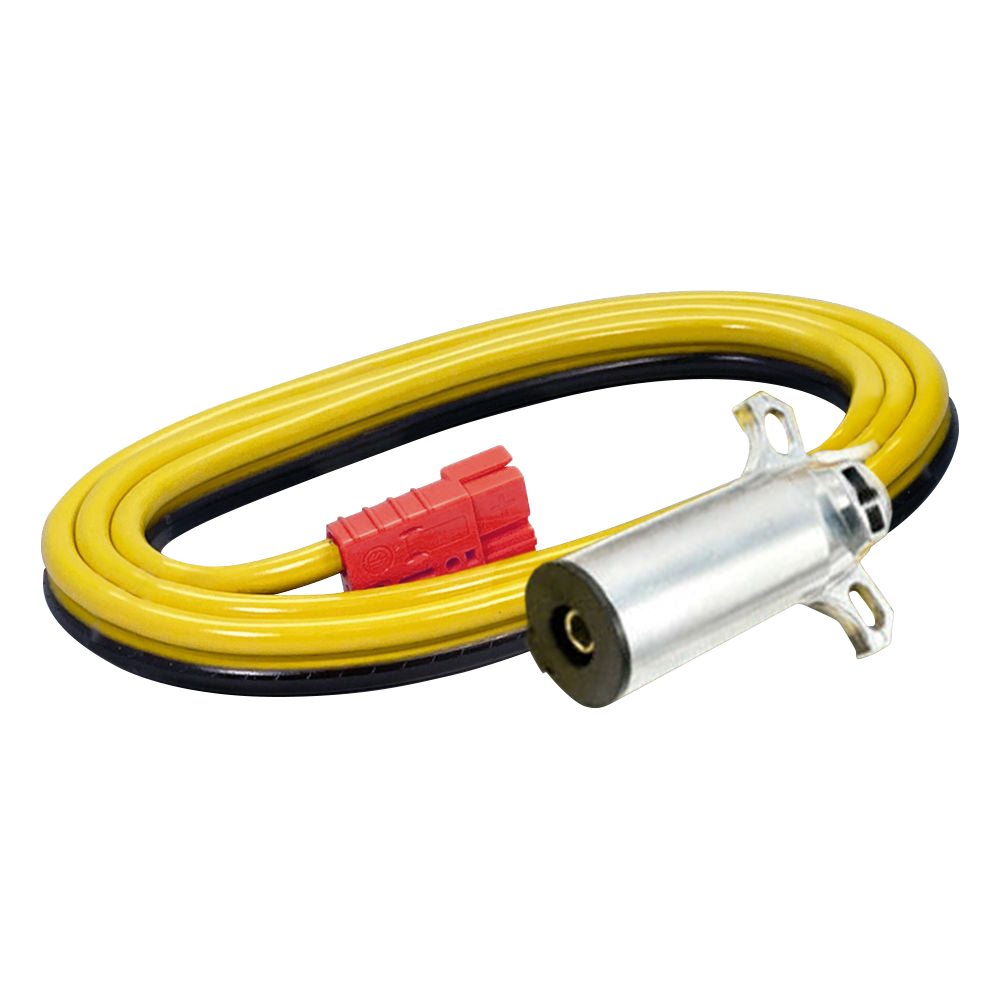

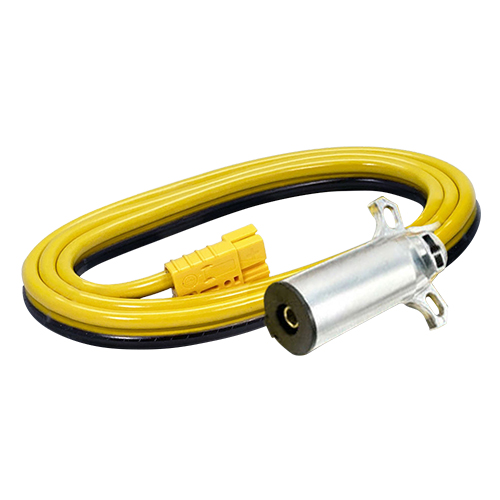

The Model M1428-DV comes with two 6-feet airframe output cables – one with a yellow SB50 for 14V output, and one with red for 28 volts – to protect from damage due to accidental voltage mismatch. Both output cables have AN2551 3-pin oval plug that connects to the aircraft. For E/A-B connections, the 802-864 yellow to yellow SB50 may be purchased separately.

Features

Separate connectors for 14/28V output
Output meter shows volts & amps
Auto shut down safety timer
USB mobile device charger built-in
6-feet GPU output cables with 3-pin AN2551 plugs
Universal Input: 90-230 VAC 10A 50-60Hz
Color-coded, keyed SB-50 type output connection to prevent accidental voltage mismatch. (YELLOW designates 12/14 volt compatibility, RED designates 24/28 volt compatibility)

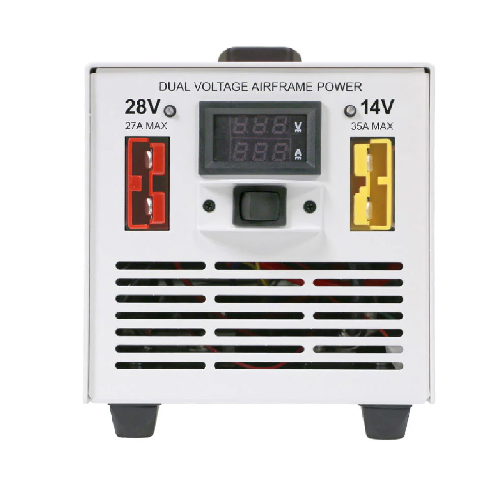

Dual digital output meters for voltage and amperage (load)
Front panel status indicator LED

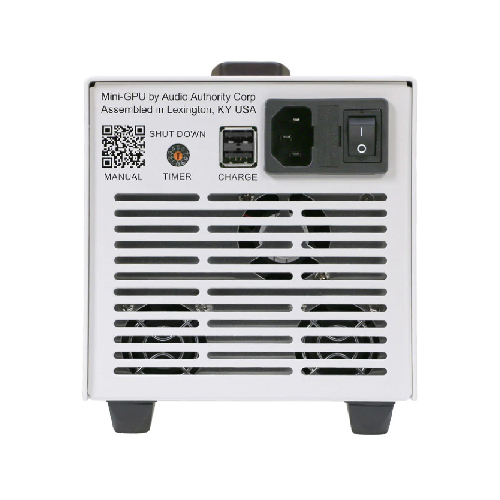

Programmable auto-shutdown timer and dual USB power ports for mobile device charging
QuietFiltered™ output for interference-free COM radio operation
Auto protection/recovery from short circuit, reverse polarity, over voltage/load/temperature

Also Purchased

Specifications

Input Voltage:

14-Volt: 90-240 volts AC, 50-60 Hz 28-Volt: 90-240 volts AC, 50-60 Hz Input Current: 14-Volt: 5.3A @ 115 volts AC 28-Volt: 8.2A @ 115 volts AC Input Protection: 10A Littelfuse 617 Series (P/N 0617010.MXP) Output: 14-Volt: 14.25 ±0.25 VDC, 35 amps max 28-Volt: 28.50 ±0.25 VDC, 27 amps max Output Cables: 14-Volt: 8 AWG, Yellow SB-50 to 3-pin oval AN2551 28-Volt: 8 AWG, Red SB-50 to 3-pin oval AN2551 Chassis Dimensions: 6.13 x 5.32 x 14.63 in Carry Weight w/cables: 17 lb Carton Dimensions: 10 x 10 x 18 in
