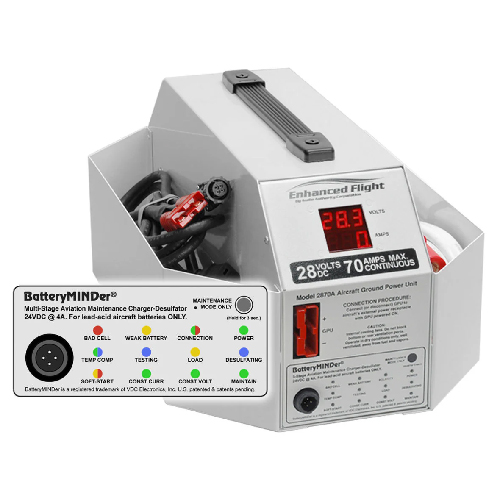

2800-Series Ground Power Unit | 70A, 28V, Integrated BatteryMINDer Charger
Product Description
The next generation 2800 Series GPUs achieve a remarkable 89% electrical efficiency to provide up to 2,000 watts of power. Its cool running, switching-mode power modules provide massive amounts of stable, noise-free power from a 90-230 volt AC outlet. It will safely power the most delicate airframe systems with laboratory-grade DC without risk of costly damage to sophisticated avionics, instruments, or electronic equipment. This new generation GPU is designed as a practical alternative to large, expensive start carts, battery chargers, and other devices designed primarily to spin starter motors. Unique, ergonomic design features dual, removable cord/tool caddies.
The Model 2870A-B2 provides 28-volt DC power for:
- Powered preflight and battery top-off

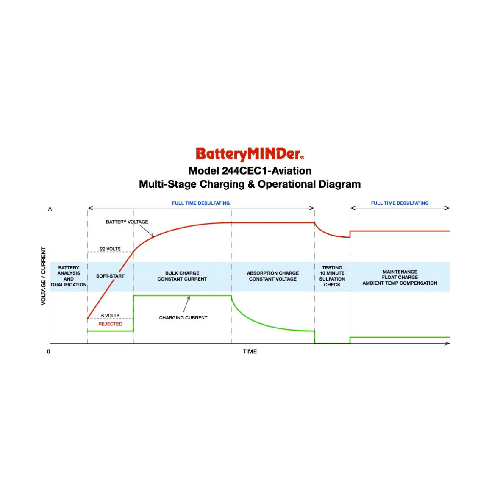

- Battery charging and conditioning with BatteryMINDer charging system
- Cockpit procedures training NavData updates
- Cabin environmental systems
- General maintenance
This 2800 series GPU (EDMO# 2870A-B2) has a 28V output with 70 Amp continuous power and a 100—240 VAC, 50—60Hz 9.5A universal input — and includes integrated BatteryMINDer charger, maintainer, and conditioner.
Features
GPU Features:
- Output: 28 VDC, 70 Amps continuous
- Input: 100-240VAC 60Hz 19A
- Stable, noise-free DC power, safe for today's advanced cockpit systems

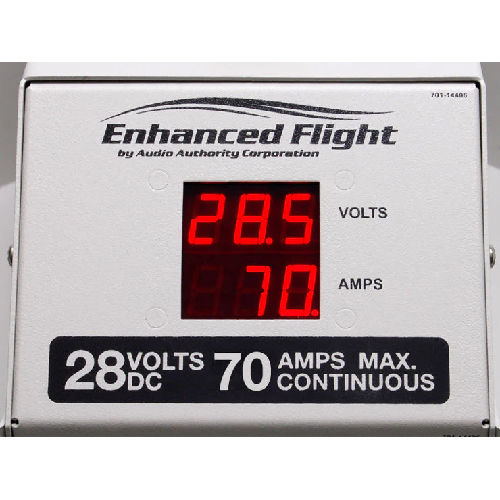

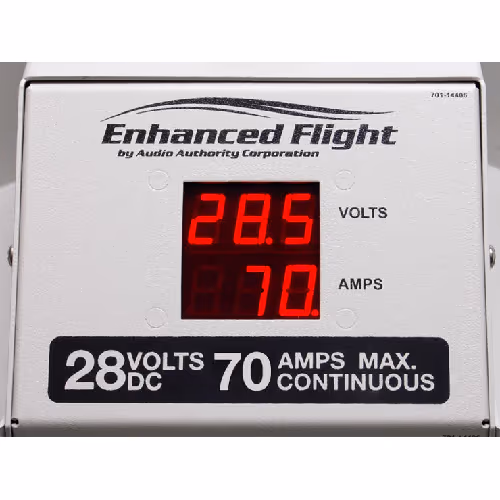

- Digital output meters for both voltage and amperes, with overload alarm

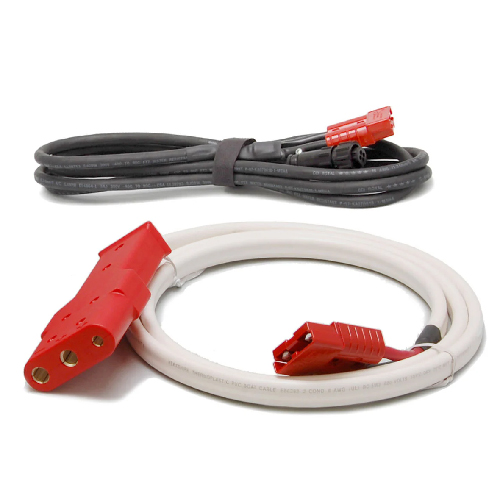

- Includes detachable input and output cables with AN2551 3-pin oval plug
- Compact, lightweight design utilizes highly efficient digital switching-mode power modules for greater reliability
- Removeable caddies for cable management and tool storage
BatteryMINDer Features:
- Input: 90-140 VAC 50-60 Hz

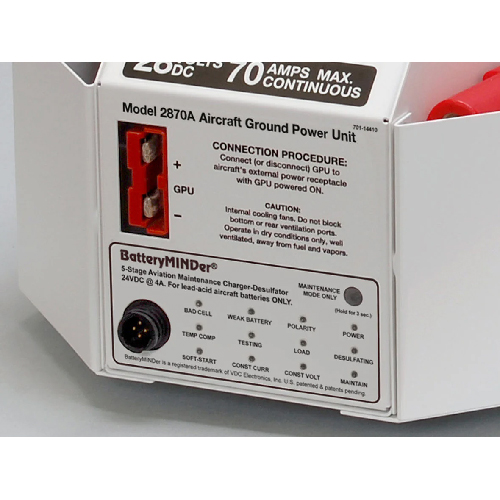

- BatteryMINDer integrated in GPU chassis
- Compatible with most aircraft batteries including Concorde

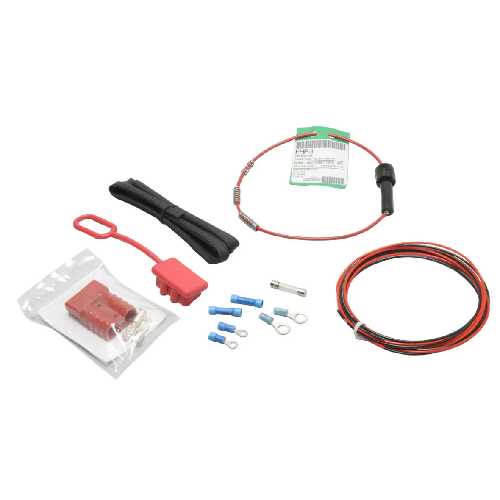

- Aircraft interface kit included for convenient and FAA approved connection
- Includes detachable charging cable
Specifications
GPU Input:
100-120 Volts AC, 60 Hz, up to 19 Amps
GPU Output:
28 ± 0.5 Volts DC, 70 Amps continuous
BatteryMINDer Input:
90-140 Volts AC, 50-60 Hz. Unloaded input current: 80 mA AC
*See BatteryMINDer user manual for detailed specifications
Weight:
23.2 lbs (10.5 kg) without cables
Dimensions including cord caddies and feet:
8.9 x 11.25 x 18.38 in (200 x 284 x 467mm)
Without cord caddies: 5.1 in (130mm)
Product Codes
- Mfr Part No:2870A-B2
- EDMO #:2870A-B2
- Brand:WHITE LIGHTNING GPU
- Category:Ground Support Equipment
- SCHEDULE B CODE:8504.40.9580
