S01 Immersion Resistant Solder Sleeve | 0.070 – 0.235in, 150°C

Product Description

S01 series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

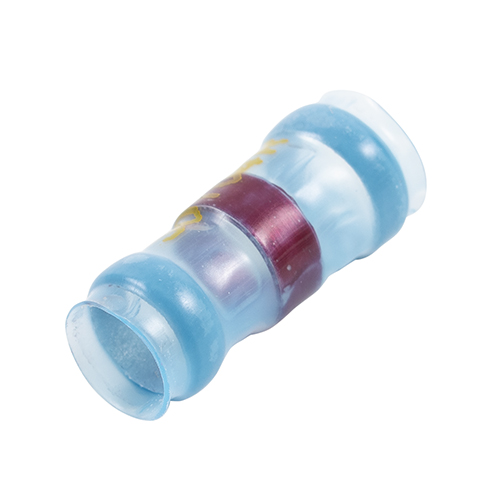

This S01 solder sleeve terminal (EDMO# S01-04-R) fits wire diameters of 0.070 – 0.235 inch (øD). No lead or braid. *see Datasheet

Specifications

• Cable Size:
  ØD: 0.070 – 0.235 in (see datasheet)
• Operating Temperature:
  -55°C to 150°C
• Solder Melt Temperature:
  183°C
• Solder Type:
  Sn63 (63% tin ,37% lead)
• Temperature Indicating Paint (TI):
  yes
• Jacket Type:
  Polyvinylidene fluoride
• Lead Wire Include:
  No
• Braid Included:
  No
• Environmental Seals:
  Yes
• RoHS Compliant:
  No
• Flux:
  TYPE ROL1 per ANSI-J-STD-004

Product Codes

• Mfr Part No
  346656-000
• MIL SPEC
  MS83519
• ECCN
  EAR99
• MIL SPEC
  MS83519
• SCHEDULE B CODE
  8536.90.4000

Documentation

• S01-0x series solder sleeve datasheet
