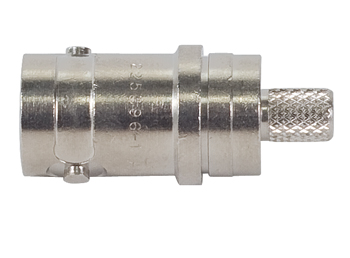

Straight BNC Female Connector Jack

Straight BNC Female Connector Jack

RAYCHEM

Call For Pricing
Available to order
EDMO # RBD50-M-03
MFR Part # 128469-000
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Part RBD50-M-03 is a straight BNC female connector jack for use with RG58, RG141, RG142, RG303 and RG400 coaxial cable.

*Comes in packs of 5 each


Features

  • 50 ohms
  • Gold-plated, brass center contact
  • PTFE dielectric material

Specifications

  • Applies To: coaxial cable
  • Sealed: no
  • RF Connector Type: BNC
  • Connect Style: jack
  • Cable Type: RG 141, RG 142, RG 303, RG 400, RG 58
  • Dielectric Material: PTFE
  • ESD Protection: without
  • Isolated Ground: no
  • Grade: military
  • Product Type: RF connector
  • Solder Terminal: with
  • Impedance: 50Ω
  • Body Characteristics: material: brass plating: nickel style: straight shield O.D.: 2.1 to 5 mm insulation: with shape: circular
  • Center Contact Characteristics: material: brass plating: gold
  • Cable Termination Type: solder

Related Products

Product Codes

  • Mfr Part No
    128469-000
  • ECCN
    EAR99
