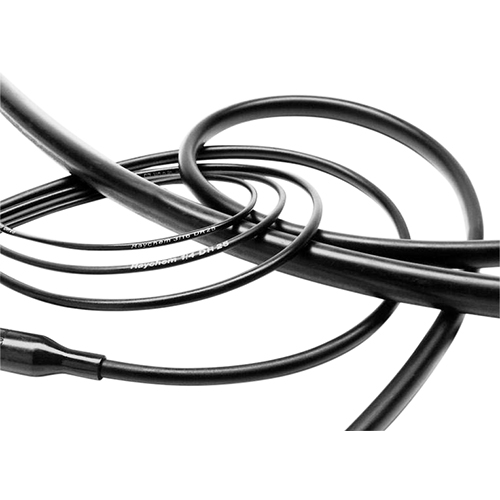

DR-25 Heat Shrink Tubing | Black, 3/4 Inch I.D., 100ft spool


RAYCHEM

CALL FOR PRICING
Available To Order
EDMO#5039254029
MFR#DR-25-3/4-0-SP

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

DR25 heat shrink tube is specially formulated for optimum performance in high-temperature fluid and long term heat resistance. DR25 has excellent resistance to aviation and diesel fuels, hydraulic fluids, and lubricating oils. Additional applications for DR25 tubing are as a jacketing material for cables and harnesses in military and motorsports vehicles.

Version EDMO#(5039254029) is black 3/4 inch inside diameter heat shrink tubing.

Features

  • Flame retardant
  • System 25 tubing
  • Shrink ratio 2:1
  • RoHS compliant

Specifications

Size:
3/4 in

Inside Diameter:
19.05 mm (0.750 in), expanded
9.5 mm (0.375 in), recovered

Recovered Wall Thickness:
1.45 ± 0.28 mm (0.057 ± 0.011 in), after heating

Operating Temperature:
-75°C to 150°C (-103°F to 302°F)

Approvals:
AMS-DTL-23053/16*
VG95343 Part 5 Type D
VDE 0341/Pt 9005
Def Stan 59-97 Issue 3 Type 6B
BS 4G-198 Part 3 10A

Product Codes

  • Mfr Part No:DR-25-3/4-0-SP
  • EDMO #:5039254029
  • Brand:RAYCHEM
  • Category:Wire, Cable & Accessories
