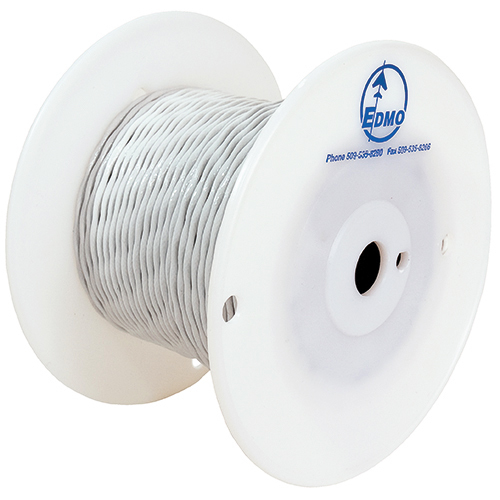

M27500-22TG3T14 Extruded ETFE Tefzel Wire | 22 AWG, 3-Conductor

Product Description

SAE AS22759/18 is made of special extruded ETFE insulation covering a tin-plated copper conductor. It is light-weight and provides the mechanical toughness and durability suitable for extreme aerospace, military, and commercial environments. This AS22759 wire has a fluoropolymer–insulation and single-conductor offering high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles and areas requiring overload stability, low smoke emission, and fire resistance such as aircraft cabins. Meeting the M27500 specifications, its low voltage and high temperature properties makes this wire & cable ideal for both military and commercial applications — including airframes, avionics, and ground support equipment.

M27500 specifications provide for a wide range of construction options allowing for optimal performance in virtually any environment. Any number of design components are available for users to choose from — including conductor size, number of conductors, insulation type, shield material (or no shield), circuit identification, and single or double walled jacket.

This M27500-22TG2T14 Tefzel™ wire (EDMO# 22TG3T14) meets SAE AS22759/18 specifications and is a 22 gauge, shielded, 3-conductor, ETFE wire. Mil-C M27500 Spec wire & cable.

Specifications

• SAE AS22759/18 SPECIFICATIONS:
• Gauge:
  22 AWG
• Number of Strands:
  19
• Strand Size:
  34
• Outside Diameter (Insulation):
  0.041 – 0.045 in
• Outside Diameter of Shield:
  0.086 in, nominal
• Conductor Diameter:
  0.030 in
• Weight:
  3.04 LB/MFT
• Impedance (@ 20°C):
  16.2 Ω/MFT, maximum
• Number of Conductors:
  3, (22TG3T14)
• Mil-Spec:
  M27500
• NEMA Type:
  WC 27500
• Conductor Material:
  tin-plated copper
• Insulation Material:
  extruded ethylene tetrafluoroethylene (ETFE)
• Shield Material:
  tinned copper braid
• Shield Coverage:
  85%
• Jacket Material:
  extruded ethylene tetrafluoroethylene (ETFE)
• Temperature:
  150°C, maximum
• Voltage Rating:
  600 V
• SAE Specification:
  SAE-AS 22759/18
• M27500 SPECIFICATIONS:
• Temperature Rating:
  Up to 200°C (392°F) depending on the type of construction
• Insulator:
  (RC-06): Polytetrafluoroethylene (PTFE) (RC-09): Extruded PTFE (TE-14, TG-14) – Extruded Ethylene Tetrafluroethylene (ETFE)
• Conductor:
  (RC-06, RC-09): Stranded Silver Coated Copper (TE-14, TG-14): Stranded Tin Copper
• Jacket:
  (RC-06): PTFE Tape (RC-09): Extruded FEP (RC-09) (TE-14, TG-14) : Extruded ETFE
• Other Designations:
  NEMA WC 27500, SAE AS22759

Product Codes

• Mfr Part No
  M27500-22TG3T14
• MIL SPEC
  M27500-22TG3T14
• ECCN
  EAR99
• MIL SPEC
  M27500-22TG3T14
• SCHEDULE B CODE
  8544.11.0030
