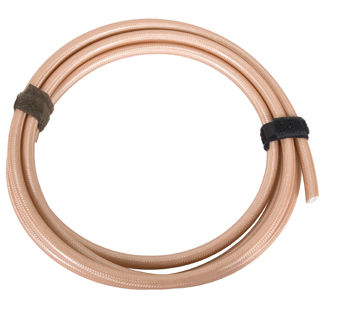

Coaxial Cable | RG-142 (MIL-DTL-17/60, MIL-C-17/60)

Product Description

MIL-DTL-17/60 is a 50-ohm coaxial cable with a silver-covered, copper-clad steel conductor, PTFE dielectric, silver-coated copper shielding, and FEP jacketing. This flexible, high-temperature design offers superior performance for aerospace, commercial, medical, or military applications. RG142 cable is the commercial RG equivalent of MIL-DTL-17/60.

Specifications

• Weight:
  43 (lbs/mft)
• Dimensions:
  Conductor 0.0370 in Dielectric 0.116 in Finished wire 0.195
• Impedance:
  50 ohms
• Capacitance:
  29.4 (pF/ft)
• Voltage rating:
  1,900V
• Temperature rating:
  -55°C to 200°C
• Operating frequency:
  0.05 – 8 GHz, swept
• Attenuation constants:
  0.36800 (k1) & 0.00120 (k2)

Product Codes

• Mfr Part No
  RG-142
• MIL SPEC
  M17/60-RG142
• ECCN
  EAR99
• MIL SPEC
  M17/60-RG142
• SCHEDULE B CODE
  8544.11.0050
• UL
  MIL-DTL-17 REV H/UL1971
