MS35214-44 Pan Head Machine Screw | 8-32 Thread, 3/4-inch Length, 0.322-inch Phillips Head

Product Description

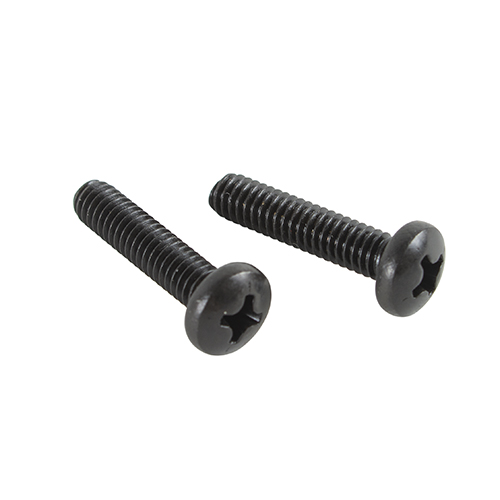

This MS35214 series pan head machine screw (EDMO# MS35214-44) has 8-32 threads, a 0.322-inch Phillips head, and is 3/4-inch in length. It is also made of black brass.

Specifications

• Thread Class:
  2a
• Thread Direction:
  Right-hand
• Thread Length:
  0.75 in
• Fastener Length:
  0.75 in
• Head Style:
  Pan Head
• Head Diameter:
  0.306 – 0.322 in
• Internal Drive Style:
  Cross recess type 1
• Nominal Thread Diameter:
  0.164 in
• Thread Quantity Per Inch:
  32
• Minimum Tensile Strength:
  55000 lb/sq. in
• Screw Material:
  Black Brass
• Thread Series Designator:
  UNC

Product Codes

• Mfr Part No
  MS35214-44
• MIL SPEC
  MS35214-44
• ECCN
  EAR99
• MIL SPEC
  MS35214-44
• SCHEDULE B CODE
  7408.29.0000
