L-C Immersion Resistant Solder Sleeve | 0.030 – 0.110in (ØD4), 125°C

Product Description

L-C series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

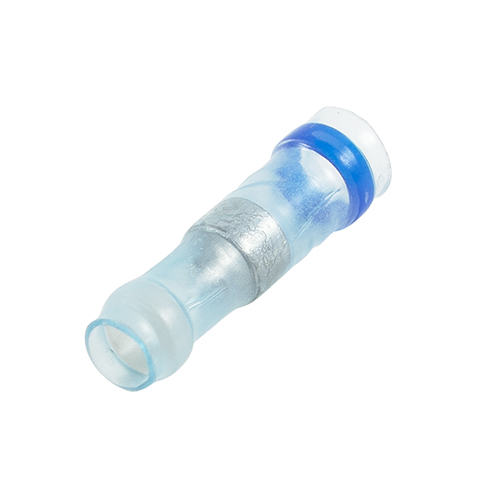

This L-C solder sleeve terminal (EDMO# L-C-2) fits wire diameters of 0.030 – 0.110 inch (ØD4). No lead or braid. *see Datasheet

Specifications

• Cable Size:
  ØD4: 0.030 – 0.110 in (see datasheet)
• Operating Temperature:
  -55°C to 125°C
• Solder Melt Temperature:
  145°C
• Solder Type:
  Sn63 (63% tin ,37% lead)
• Temperature Indicating Paint (TI):
  yes
• Jacket Type:
  Radiation Cross-linked, Modified Polyvinylidene fluoride
• Lead Wire Included:
  No
• Braid Included:
  No
• Environmental Seals:
  Yes
• RoHS Compliant:
  No
• Flux:
  TYPE RMA flux ROL1 per ANSI-J-STD-004

Product Codes

• Mfr Part No
  189-10282
• ECCN
  EAR99
• NAS
  1745-14
• SCHEDULE B CODE
  8536.90.4000

Documentation

• L-C-x series solder sleeve datasheet
