800 Series Military Panel Mount Indicator Light | Green, Non-Dimmable Lens


DIALIGHT

Call For Pricing
In stock
EDMO # MS25041-7
MFR Part # 800-1030-0332-504
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

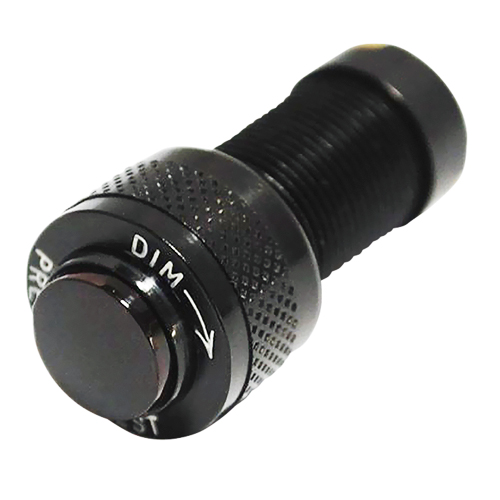

The 800 Series panel mountable indicator lights meet military specifications and are available in several colors: red, green, yellow, blue, and clear. This light feature a Press-to-test function and mounts into a 15/32 inch diameter hole.


This military panel indicator light (EDMO# MS25041-7) has a green light with a non-dimmable lens cap.

Features

  • Meets or exceeds MIL-L-3661B
  • Includes Press-to-test feature
  • 15/32 inch mounting hole diameter
  • T-1 3/4 Midget flange base

Also Purchased

Specifications

  • Mounting Hole Diameter:
    15/32 in (11.91 mm)
  • Light Source:
    T1 3/4 Midget
  • Color:
    Green (MS25041-7)
  • Voltage:
    2.7V – 28V
  • Termination
    : solder tabs
  • Mounting Style:
    nut and washer
  • Replaceable lamp:
    yes

Related Products

Product Codes

  • Mfr Part No
    800-1030-0332-504
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.50.9065
