801 Series Military Panel Mount Indicator Light | Green, Dimmable Lens

DIALIGHT

Call For Pricing

In stock

EDMO # MS25041-3

MFR Part # 801-1030-0332-504

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 801 Series panel mountable indicator lights meet military specifications and are available in several colors: red, green, yellow, blue, and clear. This light feature a Press-to-test function and mounts into a 15/32 inch diameter hole.

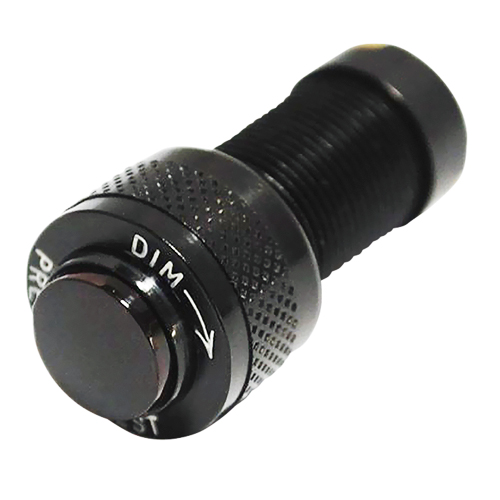

This military panel indicator light (EDMO# MS25041-3) has a green light lens with a dimmable lens cap.

Features

Meets or exceeds MIL-L-3661B
Includes Press-to-test feature
15/32 inch mounting hole diameter
T-1 3/4 Midget flange base

Also Purchased

Specifications

Mounting Hole Diameter:

15/32 in (11.91 mm)
Light Source:

T1 3/4 Midget
Color:

Green (MS25041-3)
Voltage:

2.7V – 28V
Termination:

Solder tabs
Mounting Style:

Nut and washer
Replaceable lamp:

Yes

Product Codes

Mfr Part No

801-1030-0332-504
ECCN

EAR99
SCHEDULE B CODE

8536.50.9031
