801 Series Military Panel Mount Indicator Light | Amber, Dimmable Lens
Product Description
The 801 Series panel mountable indicator lights meet military specifications and are available in several colors: red, green, yellow, blue, and clear. This light feature a Press-to-test function and mounts into a 15/32 inch diameter hole.

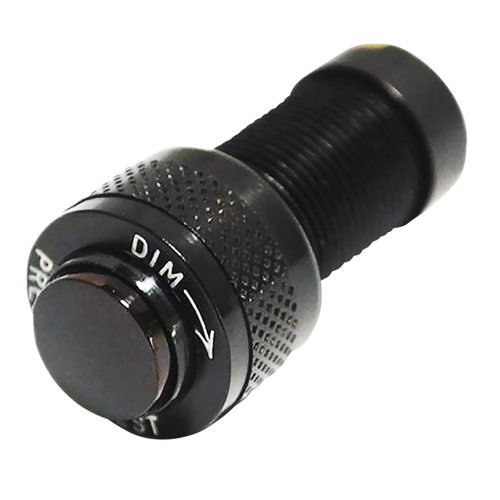

This military panel indicator light (EDMO# MS25041-4) has an amber light lens with a dimmable lens cap.
Features
- Meets or exceeds MIL-L-3661B
- Includes Press-to-test feature
- 15/32 inch mounting hole diameter
- T-1 3/4 Midget flange base
Specifications
Mounting Hole Diameter:
15/32 in (11.91 mm)
Light Source:
T1 3/4 Midget
Color:
Amber (MS25041-4)
Voltage:
2.7V – 28V
Termination:
Solder tabs
Mounting Style:
Nut and washer
Replaceable lamp:
Yes
Product Codes
- Mfr Part No:801-1030-0333-504
- EDMO #:MS25041-4
- Brand:DIALIGHT
- Category:Aircraft Lighting
- ECCN:EAR99
- SCHEDULE B CODE:8536.50.9031
