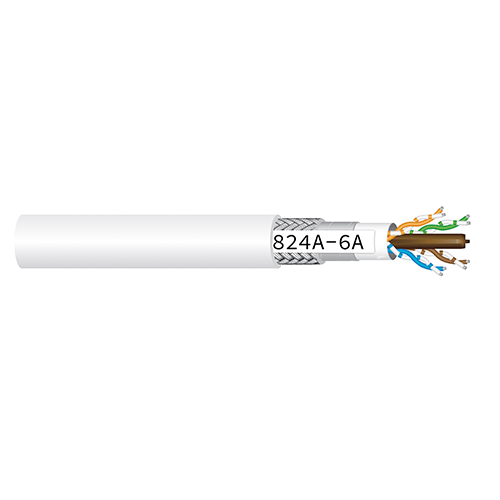

GF824A-6A Category 6A Ethernet Cable

Product Description

The GF824A-6A is designed to deliver 10 Gigabit performance in accordance to ANSI/TIA 568 Category 6A up to 246ft (74.98m). The GF824A-6A is a suitable electrical alternative to the E6A6824 and MX10G-24.

Should your application require a higher operating temperature, the GF824A-6A features a sliver-plated outer braid giving it a rating of up to +200ºC versus the GF824E-6A, which features a tin-plated outer braid and temperature rating of up to +150ºC.

Specifications

• Weight:
  44 lbs/1,000 ft
• Outer Diameter:
  0.26 in (6.6 mm)
• Operating Temperature:
  -55°C to 200°C
• Minimum Bend Radius:
  1.3 in (33.02 mm)
• Impedance:
  100 Ω
• Capacitance:
  14.5 pF/ft (47.57 pF/m)
• Velocity of Propagation:
  70%
• DC Resistance:
  28.5 Ω/1000 ft (93.5 Ω/1000 m)
• Dielectric Voltage Rating:
  1.5 kV RMS
• Attenuation (+25°C):
  10 MHz: 2.2 (7.2) dB/100 ft (m) 100 MHz: 6.8 (22.3) dB/100 ft (m) 250 MHz: 10.9 (35.8) dB/100 ft (m) 500 MHz: 15.6 (51.2) dB/100 ft (m)
• Conductor:
  24 AWG Stranded SPC
• Insulation:
  Solid, High-temp Fluoropolymer
• Color Codes:
  Pair 1: Blue, White/Blue Pair 2: Orange, White/Orange Pair 3: Green, White/Green Pair 4: Brown, White/Brown
• Spline:
  Foamed, High-temp Fluoropolymer
• Binder:
  PTFE Tape
• Shield 1:
  Composite Foil
• Shield 2:
  38 AWG Silver-plated Copper Braid
• Jacket:
  White, Laser-markable ETFE

Product Codes

• Mfr Part No
  GF824A-6A
• SCHEDULE B CODE
  8544.19.0000
