100 Base-T Quadrax Ethernet Cable

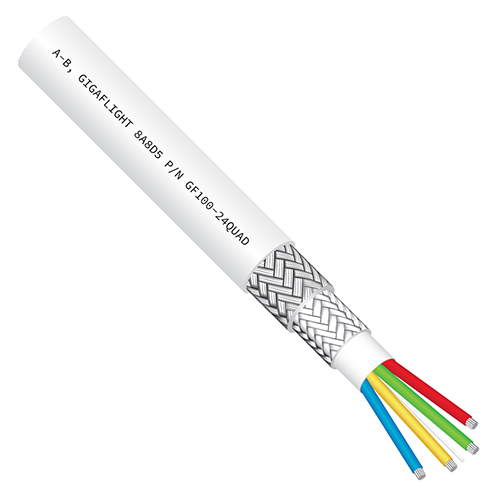

Product Description

The GF100-24QUAD is designed to meet the ARINC 664, 100 Base-T physical layer for Ethernet and exceeds Category 5e requirements. This cable is a suitable alternative to Carlisle’s NF24Q100-01 and MX100Q-24, as well as a drop-in replacement for PIC’s E51424. Any size 8 Quadrax contact designed for NF24Q100-01, MX100Q-24 or E51424 will also work with the GF100-24QUAD.

Specifications

• Outer Diameter:
  0.16 in (4.06 mm)
• Weight:
  22 lbs/1000 ft (32.74 kg/1000 m)
• Operating Temperature:
  -55°C to +150°C
• Minimum Bend Radius:
  0.80 in (20.32 mm)
• Impedance:
  100Ω
• Capacitance:
  13 pF/ft (42.7 pF/m)
• Velocity:
  80%
• DC Resistance:
  28.4 Ω/1000 ft (93.2 Ω/1000 m)
• Dielectric Voltage Rating:
  0.9 kV RMS
• Attenuation:
  10 MHz: 2.2 (7.3) dB/100 ft (m) 100 MHz: 7.9 (26) dB/100 ft (m)

Product Codes

• Mfr Part No
  GF100-24QUAD
• SCHEDULE B CODE
  8544.11.0050
