FTA-450L Communication Airband Transceiver | Comm Only, 5W Transmitter

Product Description

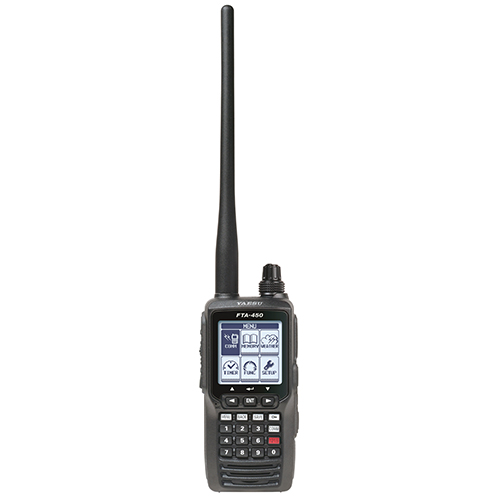

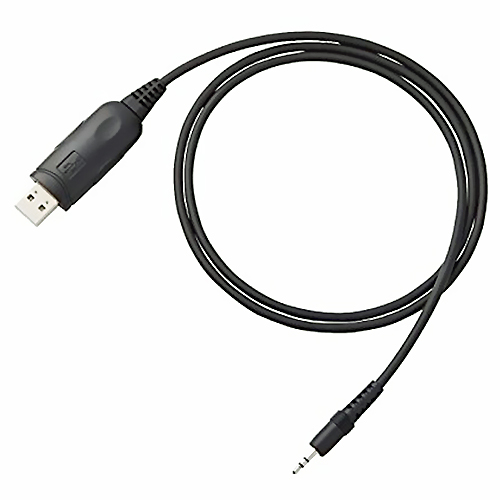

The FTA-450L is an affordable, compact communication airband transceiver. It features an advanced user interface made up of an over-sized 1.7 x 1.7 inch full dot-matrix display aiding users with intuitive operation. The loud 800 mW speaker output provides ample volume so that the radio is heard — even in noisy environments. This aviation radio stores 200 memory channels that can be recalled in just a few button presses. The FTA-450L comes with a high capacity Li-ion battery pack, 110VAC & 12VDC chargers, headset adapters, alkaline battery tray, belt clip, and USB programming cable.

Specifications

• Weight:

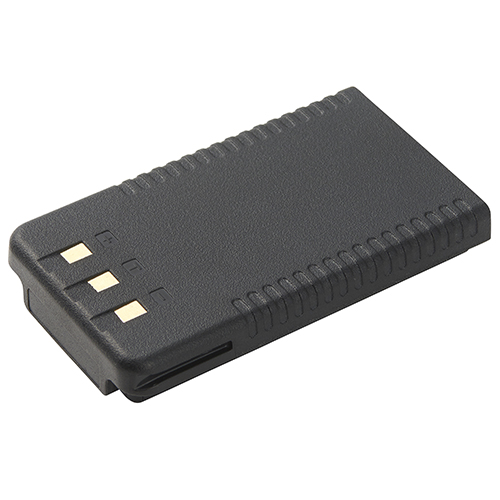

  14.5 oz (410 g) with SBR-25LI (antenna and belt clip) Dimensions: 2.4 x 5.2 x 1.3 in (62 x 133 x 34 mm) Frequency Range: TX: 118.000 MHz — 136.9916 MHz RX: 118.000 MHz — 136.9916 MHz Weather: 161.650 MHz — 163.275 MHz Channel Spacing: 25 kHz / 8.33 kHz Emission Type: TX: AM RX: AM & FM (for receive & weather) Supply Voltage: 6.0 VDC — 9.5 VDC Current Power Consumption: 300 µA (power off) 60 µA (battery saver on, saver ratio 50%) 80 mA (squelch on) 300 mA (receiver) 0.9 A (transmit 1.5W carrier) Temperature Range: 14°F to 140°F (-10°C to 60°C) Antenna Connector: BNC type RECEIVER: Circuit Type: double-conversion superheterodyne IFs: 47.25 MHz & 450 kHz Sensitivity: > 0.8 µV (for6 dB S/N with 1 kHz, 30% modulation) Adjacent CH. selectivity: > 25 kHz/-60dB AF Output (internal speaker): 0.8W @ 16Ω, 10% THD TRANSMITTER: Power Output: 5.0W (PEP), 1.5W (carrier power) Frequency Stability: > ±1 ppm Modulation System: low level amplitude modulation Int. Microphone Type: condenser Ext. Microphone Impedance: 150Ω

Product Codes

• Mfr Part No
  FTA-450L
• ECCN
  5A991
• SCHEDULE B CODE
  8525.50.6050
