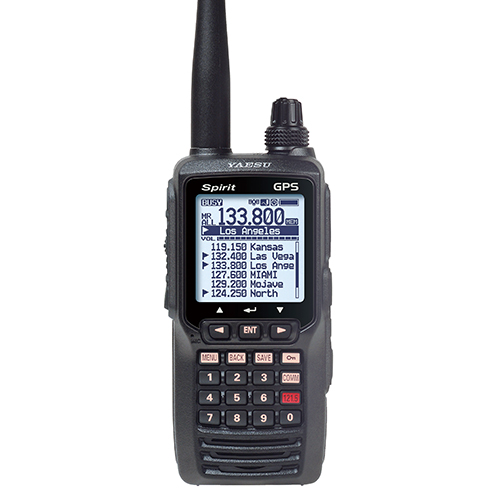

FTA-750L NAV/COMM Airband Transceiver | NAV/COMM/GS functionality, 5W Transmitter

Yaesu

Call For Pricing

In stock

EDMO # FTA-750L

MFR Part # FTA-750L

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The FTA-750L is an advanced VHF airband navigation and communication transceiver with glideslope frequency. It features an advanced user interface made up of an over-sized 1.7 x 1.7 inch full dot-matrix display for providing communication functions as well as VOR and ILS navigation features. This NAV/COMM aviation radio provides NOAA weather band monitoring and able to store 200 memory channels with a quick and easy channel recall feature, also this radio includes 66 channel GPS receiver for providing reliable navigation. Additionally the FTA-750L can easily be reprogrammed in minutes using the optional PC Programming software and the supplied USB programming cable.

This FTA-750L aviation radio (EDMO# FTA-750L) includes a li-Ion battery, 110V and 12VDC charger with cradle, alkaline battery tray, antenna, belt clip, headset adapter, and USB programming cable.

Features

5 Watts transmit power
Large 1.7 x 1.7 inch backlit, full dot-matrix display and keypad
ILS navigation display (localizer & glideslope)
VOR navigation display
Integrated 66 channel WAAS GPS receiver
Waypoint Navigator
Available GPS position logging option
8.33 kHz narrowband compatible
NOAA Weather channel receive & weather alert
200 memory channels with 15 character alphanumeric tags
Backlit keypad and display with dimming
IPX5 water protection rating
MIL-STD-810F rugged construction
Loud 0.8 watt speaker
High capacity Li-ion battery
External DC input for operation and charging
PC Programmable (Requires optional USB cable)

Specifications

Weight:

14.5 oz (410 g) with SBR-25LI (antenna and belt clip) Dimensions: 2.4 x 5.2 x 1.3 in (62 x 133 x 34 mm) Frequency Range: TX: 118.000 MHz — 136.9916 MHz RX: 118.000 MHz — 136.9916 MHz (NAV and COM) Weather: 161.650 MHz — 163.275 MHz 329.150 MHz — 335.000 MHz (glide slope) Channel Spacing: 25 kHz / 8.33 kHz Emission Type: TX: AM RX: AM & FM (for receive & weather) Supply Voltage: 6.0 VDC — 9.5 VDC Current Power Consumption: 300 µA (power off) 60 µA (battery saver on, saver ratio 50%) 110 mA (squelch on, GPS on) 300 mA (receiver) 0.9 A (transmit 1.5W carrier) Temperature Range: 14°F to 140°F (-10°C to 60°C) Antenna Connector: BNC type RECEIVER: Circuit Type: double-conversion superheterodyne IFs: 47.25 MHz & 450 kHz Sensitivity: > 0.8 µV (for6 dB S/N with 1 kHz, 30% modulation) Adjacent CH. selectivity: > 25 kHz/-60dB AF Output (internal speaker): 0.8W @ 16Ω, 10% THD TRANSMITTER: Power Output: 5.0W (PEP), 1.5W (carrier power) Frequency Stability: > ±1 ppm Modulation System: low level amplitude modulation Int. Microphone Type: condenser Ext. Microphone Impedance: 150Ω
