FTA-850L NAV/COMM Airband Transceiver | NAV/COMM/GS, Bluetooth, 6W Transmitter

Yaesu

Call For Pricing

In stock

EDMO # FTA-850L

MFR Part # FTA-850L

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

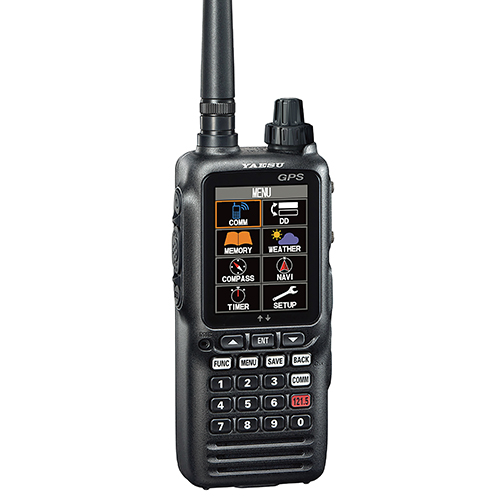

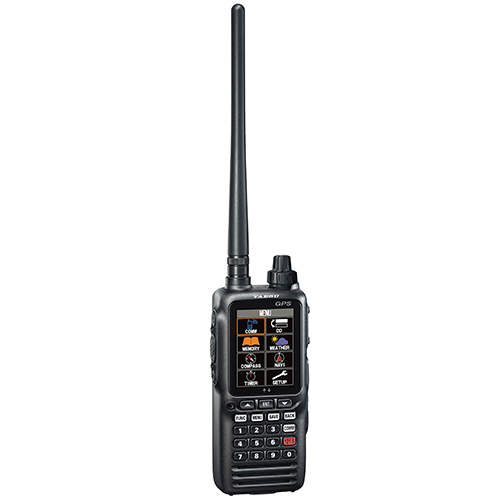

The FTA-850L is 6-watt, advanced portable airband transceiver that combines communication and navigation with glide slope features. Wireless bluetooth technology allows operation with a bluetooth enabled headset, or using the optional SSM-BT10 headset from Yaesu. The 2.4-inch, full color TFT display provides enhanced navigation system, including ILS, VOR, and GPS. The tough polycarbonate housing meets the IPX5 water-proof rating while a high capacity 2,200 mAh lithium-ion battery keeps this advanced NAV/COMM radio going strong all day. This unit stores up to 400 memory channels, a sixty-six channel integrated WAAS GPS receiver, as well as NOAA weather receiver and alert channels.

This FTA-850L aviation radio (EDMO# FTA-850L) is packaged with a high capacity lithium-ion battery, 12VDC charger/power cable, drop-in charging cradle, backup alkaline battery tray, and a heavy-duty belt clip.

Features

6 watt transmitter power
Large 2.4 inch TFT color display
Displays dual frequencies
Wireless Bluetooth operation
ILS navigation display for localizer and glide slope
VOR navigation display
Integrated 66 channel WAAS GPS reciever
Waypoint navigation
8.33 kHz narrowband compatible
NOAA Weather channel receive & weather alert
400 memory channels with 14 character alphanumeric tags
IPX5 water protection rating
MIL-STD-810F rugged construction
Loud 0.9 audio output
PC programmable with included USB cable

Specifications

Weight:

13.9 oz (410 g) with SBR-25LI (antenna and belt clip) Dimensions: 2.4 x 5.2 x 1.3 in (62 x 133 x 34 mm) Frequency Range: TX: 118.000 MHz — 136.9916 MHz RX: 118.000 MHz — 136.9916 MHz (NAV and COM) Weather: 161.650 MHz — 163.275 MHz 329.150 MHz — 335.000 MHz (glide slope) Channel Spacing: 25 kHz / 8.33 kHz Emission Type: TX: AM RX: AM & FM (for receive & weather) Supply Voltage: 6.0 VDC — 9.5 VDC Current Power Consumption: 300 µA (power off) 125 µA (battery saver on, saver ratio 50%) 160 mA (squelch on, GPS on) 300 mA (receiver) 0.9 A (transmit 1.5W carrier) Temperature Range: 14°F to 140°F (-10°C to 60°C) Antenna Connector: BNC type RECEIVER: Circuit Type: double-conversion superheterodyne IFs: 47.25 MHz & 450 kHz Sensitivity: > 0.8 µV (for6 dB S/N with 1 kHz, 30% modulation) Adjacent CH. selectivity: > 25 kHz/-60dB AF Output (internal speaker): 0.8W @ 16Ω, 10% THD TRANSMITTER: Power Output: 6.0W (PEP), 1.8W (carrier power) Frequency Stability: > ±1 ppm Modulation System: low level amplitude modulation Int. Microphone Type: condenser Ext. Microphone Impedance: 150Ω
