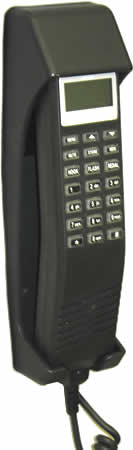

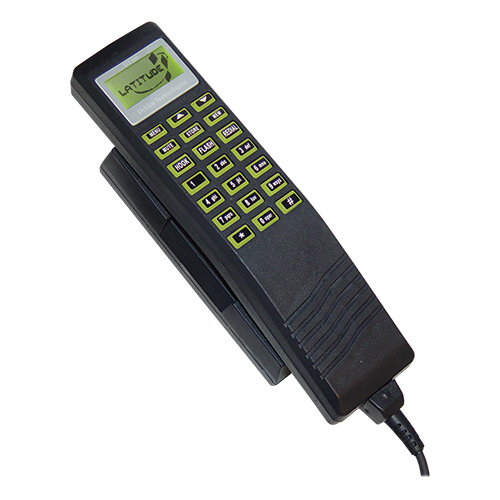

DT100 Telephone Handset with Locking Base | 6 ft. Coil Cord with RJ11/6 and 9-Pin D-Sub Male Connectors, 16 in. Straight Pigtail

Product Description

The Deklin Technologies DT100 analog telephone handset is a practical and economical solution for today’s aircraft telephone systems. Its sleek comfortable lightweight design fits easily into any cabin decor. It has advanced features such as a noise reduction microphone and adjustable volume control with user friendly operation. Additional features include last number redial, 10 memory speed dial numbers,flash,hold and mute. The keypad lights up when the phone is taken Off Hook to aid the user in dialing. The locking base requires minimal space while providing maximum mounting flexibility and security. The Tip and Ring telephone circuit connects to most general aviation transceivers. The lit keypad is located on the back of the handset for easy access. The number and junction keys are clearly marked and easy to use.

This DT100 telephone handset with locking base (EDMO# DT100-302) has a 6-foot coil cord with RJ11/6 and 9-pin D-Sub male connectors on both ends with a 16-inch straight pigtail. It uses the IK200 install kit that consists of consists of 1 9-pin female D-Sub connector, 9 D-Sub connector sockets, and 1 set of screw locks.

Specifications

• Weight:
  0.5 lb (0.23 kg)
• Dimensions:
  7.51 x 1.85 x 2.47 in (192 x 47 x 63 mm)
• Telephone Line Inputs:
  1
• Telephone I/F:
  2-wire analog POTS
• Distortion:
  <5%
• Ringing Voltage:
  90 VAC ± 15V (no load)
• On-Hook Voltage:
  -48 VDC (with respect to airframe)
• Input Voltage:
  22 VDC – 33 VDC (27 VDC, nominal)
• Input Current:
  0.5 Amp (nominal)
• Fuse Rating:
  1 Amp
• Temperature:
  -5°F to 105°F (-20°C to 40°C), operating -40°F to 158°F (-40°C to 70°C), survival
• Humidity:
  95%
• Altitude:
  35,000 ft
• Connectors:
  RJ11/6 jack or SD910JV50 9 D-sub
• Case Material:
  Flame retardant ABS, polyac® PA-766
• Flame Retardant Qualification:
  FAR25.853 Part1, (a),(1),(v)

Product Codes

• Mfr Part No
  DT100-302
• DFARS
  DO160E
