AIU-900 Autopilot Interface Unit | Garmin GI275 to Century 1C388-2/IC388-3
Product Description

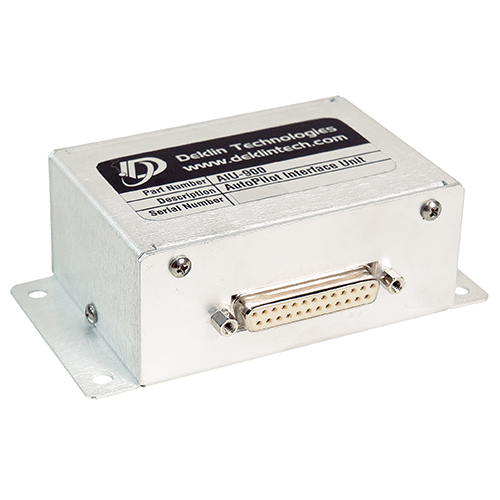

The AIU-900 is a pre-assembled autopilot interface unit following the interconnect specifications and component requirements recommended by the manufacturers of certain PFD systems when interfaced with existing 1C388 series autopilot couplers. This unit is intended to provide a convenient solution in a single device with multiple variations for installers to use in place of producing the same circuits from discrete components as specified in PFD installation manuals.
This AIU-900 auto pilot adapter (EDMO# AIU-900F) interfaces the Garmin GI275 to Century 1C388-2/388-3. Does NOT include install kit (AIU-900IK).
Features
- EFD1000PRO PFD to 1C388 series autopilot couplers
- For Aspen or Garmin PFD's to 1C388 series autopilot couplers
- Compact size
- D-Sub connector
- Easily mounted
Specifications
Dimensions:
4.60 x 2.56 x 1.50 in, (116.5 x 65 x 1.5 mm) without mating connector
Weight:
0.38 lb (0.17 kg)
Connectors:
25-pin female D-sub connector
Mounting:
Bulkhead, four 8/32 screws
Input Voltage:
Not Applicable
Current:
Not Applicable
Capacitors:
0.047uF Metallized Polyester, 100V
Inductor, Choke:
18 mH
Resistors:
2.2 KΩ 0.25W, 1% (x2), 10 KΩ 0.25W, 1%
Trim Pots:
5 KΩ, 200 KΩ Single Turn, Side Adj
Transformers:
SP-13 (X2), SP-66
Case Material:
5052H32 Aluminum Chassis and Cover
Product Codes
- Mfr Part No:AIU-900F
- EDMO #:AIU-900F
- Brand:DEKLIN TECHNOLOGIES
- Category:Flight Systems
- ECCN:7a994
- SCHEDULE B CODE:8525.60.2000
