BT200 Handheld Beacon Tester | ELTs, EPIRBs, and PLBs | Supports First and Second Generation Beacons (FGB & SGB)

Select Testing Configuration

WS TECHNOLOGIES

Call For Pricing

In stock

EDMO # BT200-2300

MFR Part # BT200-2300B

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

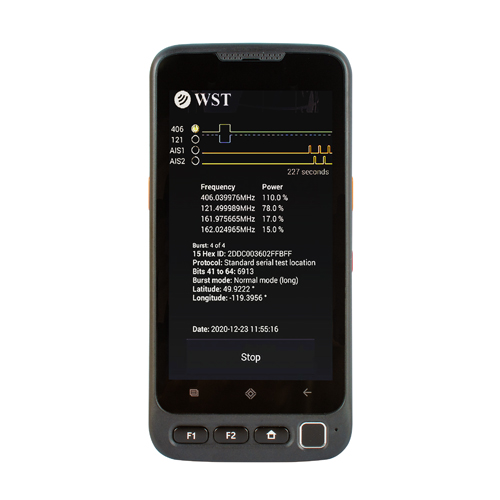

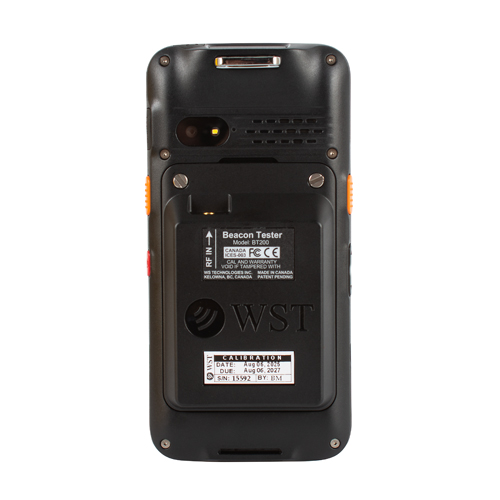

The BT200 is a compact and rugged handheld beacon tester with an intuitive user interface. Based on the Android operating system, this device is capable of measuring all known Cospas-Sarsat approved emergency locator beacons: AIS-EPIRBs and AIS transceivers (both class A and B). This unit offers a fully integrated, IP68-rated design, which provides a rugged, waterproof, and portable ELT test unit. The BT200 will cover the 406 MHz, 121.1 MHz, and 243 MHz channel frequencies for complete measurement tests, while a built-in oscilloscope allows users to monitor the received signals in real time. Operators are able to add text, audio, photos, and videos to measurement data and also create custom PDF and IMO test reports. The measurement data can easily be transferred to a PC for analysis and storage. This ELT beacon tester exceeds all IMO, FAA, IC, and EuroCAE EPIRB, ELT, and AIS inspection requirements.

The BT200 Handheld Beacon Tester (2nd gen.) (EDMO# BT200-2300) supports both first- and second-generation beacons (FGB & SGB) and is for ELTs, EPIRBs, and PLBs.

Features

Includes:
BT200 Beacon Tester, RF Input Cable, USB Interface Cable, OTG/USB Cable, Operator’s Manual, AC Adapter, Waterproof Hardcase, Screen Cleaning Cloth, Certificate of Calibration and Certificate of Conformance.
Features:
Measure and decode all 406, 121.5, 243 MHz frequency parameters
Measure all First and Second Generation Beacons (FGB & SGB)
Measure all ELTs, EPIRBs, and PLBs
Receiver is fully integrated into IP67 Android smart device
Create custom PDF Test Reports
Receive real-time measurement details with Oscillograph feature
Receive full RF power from ELT with no attenuator required
Use antenna mode to test ELT over the air (up to 10m)
Transfer data via USB to PC or printer
Exceeds IMO, FAA, IC, and EuroCAE ELT certification requirements
Download free software and firmware updates

Specifications

Weight:

0.49 lb (222 g)
Dimensions:

5.31 x 2.76 x 0.76 in (135 x 70 x 20 mm)
RF Range:

406 MHz, 121.5/243 MHz, AIS: 1.2:1
Dynamic Range:

121.5 & 243 MHz: +5 dBm to +35 dBm 406 MHz: +20 dBm to +40 dBm AIS: +10 dBm to +30 dBm
Maximum Power Input:

+34.8 dBm (continuous) / +43 dBm (AIS)
Temperature Range:

5°C to 50°C (operating) -20°C to 60°C (storage)
Ingress Rating:

IP67
RF Input Cable Termination:

BNC-f
