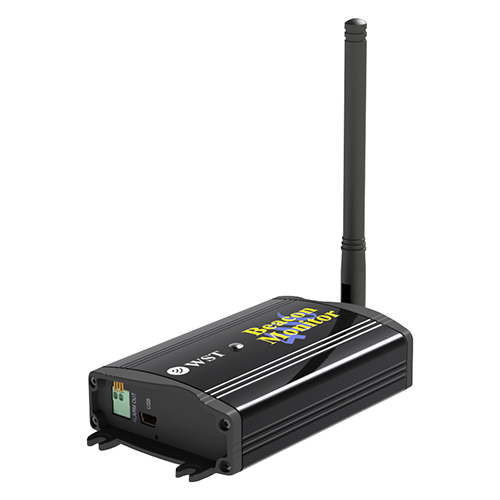

406MHz ELT Beacon Monitor | USB

WS TECHNOLOGIES

Call For Pricing

Available to order

EDMO # FBM200A

MFR Part # 910-FBM200A

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 406 ELT Beacon Monitor from WS Technologies, Inc. provides real-time monitoring for all Cospas-Sarsat 406 MHz beacon transmissions. This device displays and decodes 406 messages with the ability to automatically receive all past, present, and future Cospas-Sarsat channels. All information is organized in an XML format for use in a database; additionally, information can be time-stamped and data logged. A GPS antenna and receiver allow the user to obtain precise geographical data which is then automatically mapped to Google Earth, making it easy to view the GNSS location data with Google's detailed array of mapping features.

Features

Includes:
USB cable (2 meter length)
AC to USB adapter
Ethernet cable (2 meter length)
Molded 406 MHz monopole antenna
GPS active antenna (5 m cable length)
Certificate of calibration
Operator's manual
User interface software
Features:
Monitors 406 ELTs in real time, displays and decodes messages, measures and displays RSSI (receiver signal strength), and displays distance to beacon
Automatically receives all past, present, and future Cospas Sarsat channels with -125 dBm sensitivity (software adjustable sensitivity)
Automatically maps the location of the decoded GNSS location data into Google Earth__ for easy viewing and access to a detailed geographical interface
Data is XML formatted for use in database applications
Can send alerts via email and/or SMS text messaging
Capable of logging data with a time stamp
Connects to PCs with a USB cable or Ethernet interface which allows for remote management and diagnostics; power is supplied through connection to a PC USB port or an AC adapter
Multiple units can be connected together for a wider range of coverage
Rugged aluminum design can sit on a desk or be mounted on a wall
Optional components: high performance outdoor antenna
