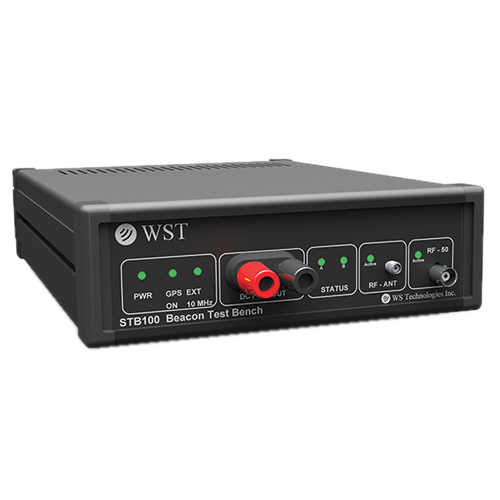

STB100 Test Bench Beacon Tester

WS TECHNOLOGIES

Call For Pricing

Available to order

EDMO # STB100

MFR Part # STB100

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The STB100 is a bench top beacon test unit which is perfect for maintenance facilities, test facilities, beacon manufacturers, and beacon developers. The STB100 tests 406 MHz, 121.5 MHz, 243 MHz, and performs 406 MHz frequency stability. It has accurate DC current and voltage sensing that allows for the characterization of the DC power supplied to a beacon and measures leakage current down to 200 nA. Connect up to two temperature probes to add temperature data to each measurement. The I/O interface has 2 relays, 8 analog I/O lines, and 8 ADC input lines for use with user-defined functions. An internal GPS receiver allows for delta distance measurement for location encoded beacons. The STB100 connects to a PC while an optional API set allows advanced users to create their own customized user interface to control the unit.

Features

Includes:
STB100 Beacon Test Bench, AC Power Cord, USB to PC Cable, Active GPS Antenna, RF Input Antenna, Operator’s Manual, Certificate of Calibration, Certificate of Conformance
Features:
Measure and decode all 406, 121.5, 243 MHz frequency parameters
Measure all First and Second Generation Beacons (FGB & SGB)
Measure all ELTs, EPIRBs, and PLBs
Measure and compute 406 MHz Frequency Stability
Measure beacon leakage current
Monitor DC supply to beacon 1 to 30v, 5mA to 8A
Measure Vin to Vout low dropout of 50mV/A
Monitor dual temperature channels
Create custom PDF Test Reports
Receive real-time measurement details with Oscillograph feature
Receive full RF power from ELT with no attenuator required
Use antenna mode to test ELT over the air (up to 10m)
Exceed IMO, FAA, IC, and EuroCAE ELT inspection requirements
Customize software with optional API Set
Download free software and firmware updates

Specifications

Weight:

6 lb (2.74 lb)
Dimension:

8.3 x 11.1 x 2.5 in (210 x 280 x 64 mm)
Connector:

BNC-f
VSWR:

1.20:1
Dynamic Range:

121.5 MHz: -10 dBm to +34 dBm 243 MHz: -8 dBm to +20 dBm 406 MHz: -12 dBm to +40 dBm AIS: -10 dBm to +30 dBm
Antenna RF Connector:

SMA-m (RP)
Maximum Input Power:

+34 dBm (continuous) 406, 121.5, 406 MHz: +40 dBm AIS: +43 dBm
Range:

406 MHz: >10 m 121.5 / 243 MHz: >2 m AIS: > 10 dBm
10 MHz Input:

SMA-f connector / 1.20:1 VSWR / -10 to +10 dBm range
GPS ANT Input:

SMA-f connector / +5V current bias
User I/O Connector:

D-subminiture, 26-pin, HD
PPS out:

SMA-f connector / Logic Level
Temperature:

10°C to 35°C (operating) -20°C to 60°C (storage)
