PIDG #6 Nylon Ring Terminal | 22 – 16 AWG, Red, 0.281""W, 0.797""L, 0.125"" Dia.

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

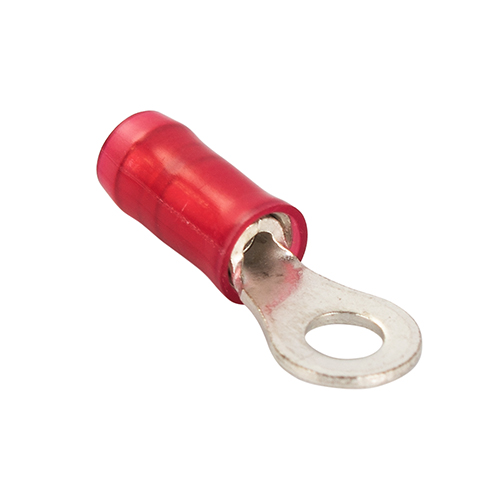

This ring terminal (EDMO# 36151) has red insulation, a #6 stud size, 0.281""W, 0.797""L, 0.125"" max insulation Dia., and used on 22 – 16 AWG wire.

Specifications

• Color:
  red
• Contact Material:
  tin-plated copper
• Insulation:
  nylon
• Mounting Style:
  screw
• Product Type:
  ring terminal
• Stud / Tab Size:
  #6 (M3.5)
• Width:
  0.281""
• Length:
  0.797""
• Max Wire Insulation Diameter:
  0.125""
• Termination Style:
  crimp
• Voltage Rating:
  300V
• Wire Gauge:
  22 – 16 AWG

Product Codes

• Mfr Part No
  36151
• CSA
  LR7189
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000
• UL
  YES

Documentation

• 36151 Envelope Drawing
