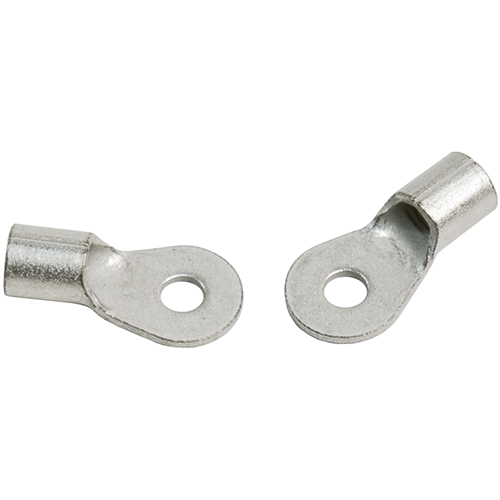

#8 SOLISTRAND Ring Terminal | 8 AWG wire, #8 stud size

Product Description

SOLISTRAND terminals and splices are used to terminate solid and strained wire and irregular shaped conductors. Constructed with high-conductivity copper that is electro-tinned for improved corrosion resistance. SOLISTRAND terminals consist of a completely closed barrel with serrations inside that provide optimum tensile strength and maximum electrical contact after crimping. The barrel has a conical entry for easy sire insertion.

Specifications

• Connector Type:
  Terminals
• Contact Materials:
  Copper
• Contact Plating:
  Tin
• Gender:
  Female
• Insulation:
  None
• Maximum Bundle Diameter:
  4.37 mm
• Stud Size:
  #8
• Termination Style:
  crimp
• Terminal Type:
  ring
• Wire Gauge:
  8 AWG

Product Codes

• Mfr Part No
  32996
• CSA
  LR7189
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000
• UL
  YES

Documentation

• 32996_Diagram.pdf
