Nylon End Splice Terminal | 22 – 18 AWG, Red

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

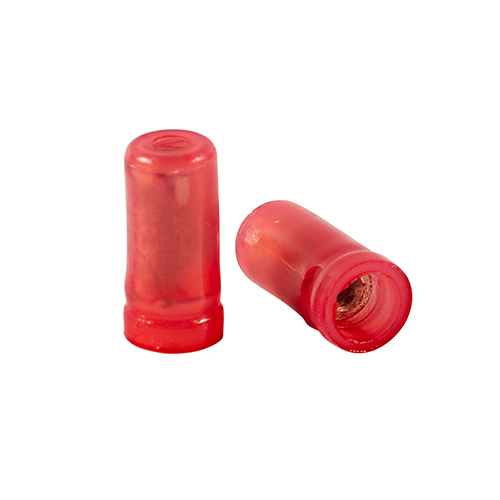

This end splice terminal (EDMO# 328307) has red insolation, and used for 22 – 18 AWG wire.

Specifications

• Dimensions:
  0.445 x 0.210 in (11.30 x 5.33 mm)
• Wire Gauge:
  22 – 18 AWG
• Color:
  red
• Operating Rating:
  (221°F) 105°C
• Contact Material:
  tin-plated copper
• Insulation:
  nylon
• Mounting Style:
  cable mount / free-hanging
• Terminal Type:
  splice
• Termination Method:
  crimp
• Voltage Rating:
  300 VDC

Product Codes

• Mfr Part No
  328307
• MIL SPEC
  MS25274-2
• ECCN
  EAR99
• MIL SPEC
  MS25274-2
• NSN
  5999-00-280-3499
• SCHEDULE B CODE
  8536.90.4000

Documentation

• 328307 Envelope Drawing
