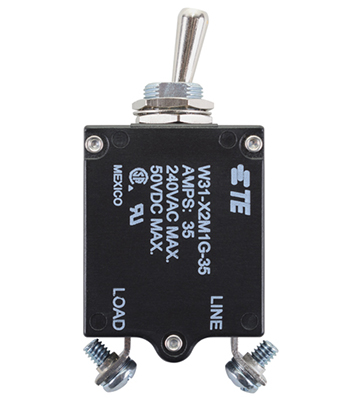

W31 Series Circuit Breaker | 35 Amp Rating, Toggle Actuator

W31 Series Circuit Breaker | 35 Amp Rating, Toggle Actuator

TE CONNECTIVITY

Call For Pricing
A tariff fee of $13.4946 EA may apply.
In stock
EDMO # W31M-35
MFR Part # 3-1393247-9
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The W31 series are single pole, thermal circuit breakers with toggle actuator and series trip function. They are UL 1077 Recognized as Supplementary Protectors. File E69543, and CSA Accepted as Supplementary Protectors (Appliance Component Protectors), File LR15734.

Includes hardware.

Features

  • The W31-X2M1G-35 circuit breaker (EDMO# W31M-35) is rated for 35 amps.
  • 0.5 amp to 50 amp ratings may be used as on/off switch
  • Cannot be reset against overload
  • Screw termination
  • Trip-free operation
  • Silver with amp rate marking toggle switch
  • Two hex nuts/lockwasher installed mounting hardware

Also Purchased

Specifications

  • Weight:
    Less than 2 oz
  • Mounting:
    Panel mount 15/32 in threaded bushing .320 in (8.13mm) long, double “D”, silver color
  • Terminals:
    Two #8-32 screw terminals (90° to each other termination)
  • Dielectric Strength:
    Over 1,500 volts RMS
  • Maximum Operating Voltages:
    50VDC or 240VAC (to 400 Hz)
  • Current Rating:
    35 amps
  • Voltage Rating AC:
    240 VAC
  • Voltage Rating DC:
    50 VDC

Related Products

Product Codes

  • Mfr Part No
    3-1393247-9
  • CSA
    LR15734
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.20.0020
  • UL
    UL 1077 / E69543
