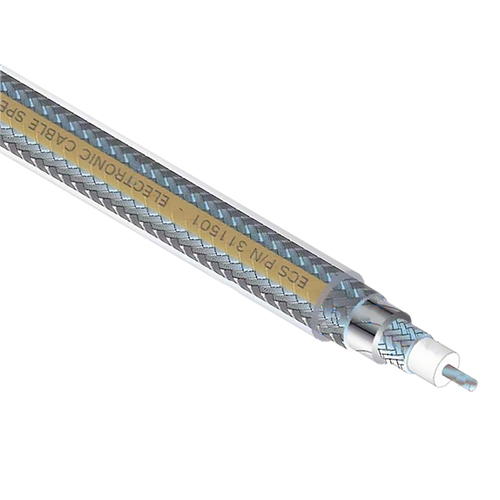

311501 Coaxial Cable | 50 Ω

Product Description

Designed for unmatched performance, this 50 Ohm coaxial cable sets a new standard in the aviation industry. Constructed with a solid 15 AWG silver-plated copper conductor and encased in a high-temperature fluoropolymer dielectric, it ensures minimal signal loss and maximum durability. With triple-layered shielding for superior electromagnetic interference protection and a clear, high-temperature fluoropolymer jacket, this cable offers unparalleled reliability and safety.

Specifications

• Outer Diameter:
  0.229 in, nominal
• Bend Radius:
  1.2 in, nominal
• Weight:
  5.1 lb/100 ft, nominal
• Temperature Range:
  -55°C to 200°C
• Skydrol Resistant:
  Yes
• Impedance:
  50Ω nominal
• Capacitance:
  25.5 pF/ft nominal
• DC Resistance:
  2.98 Ohms/1,000 ft nominal
• Time Delay:
  1.27 ns/ft nominal
• Velocity of Propagation:
  80% nominal
• Shield Effectiveness:
  >90 dB
• Attenuation (nominal):
  2.7 dB/100 ft @ 150 MHz 7.1 dB/100 ft @ 1000 MHz 9.1 dB/100 ft @ 1600 MHz 10.7 dB/100 ft @ 2400 MHz 16.1 dB/100 ft @ 5000 MHz

Product Codes

• Mfr Part No
  311501
• ECCN
  EAR99
• SCHEDULE B CODE
  8544000000
