M27500-22SD1T23 Extruded XL-ETFE Tefzel Wire | 22 AWG, 1 Conductor

Product Description

SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

M27500-22SD1T23 meets SAE AS22759/34 specifications with a cross-linked, modified ETFE insolation surrounding an aromatic polyamide braid that provides a EMI/RFI shielding and features a tin-plated, copper conductor with a temperature rating of 150°C — offering both flexibility and durability.

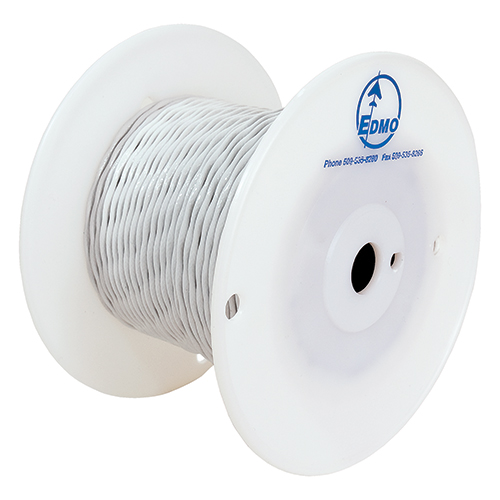

This M27500-22SD1T23 extruded XL-ETFE tefzel wire (EDMO# 24SD1T14) has a single, tin-plated 22 AWG conductor with extruded XL-ETFE insolation, a 150°C rating. Colored white.

Specifications

• Wire Size:
  22 AWG
• Number of Conductors:
  1
• Shield size:
  38 AWG
• Conductor Stranding:
  19/34
• Weight (approx.):
  7.9 lb/MFT
• Max. Resistance @ 20°C:
  16.20 Ω/MFT
• Outside Diameter:
  0.084 in (nominal), 0.089 in (maximum)
• Jacket Thickness:
  0.005 in (minimum), 0.010 in (maximum)

Product Codes

• Mfr Part No
  M27500-22SD1T23
• MIL SPEC
  M27500-22SD1T23
• ECCN
  EAR99
• MIL SPEC
  M27500-22SD1T23
• SCHEDULE B CODE
  8544.11.0030
