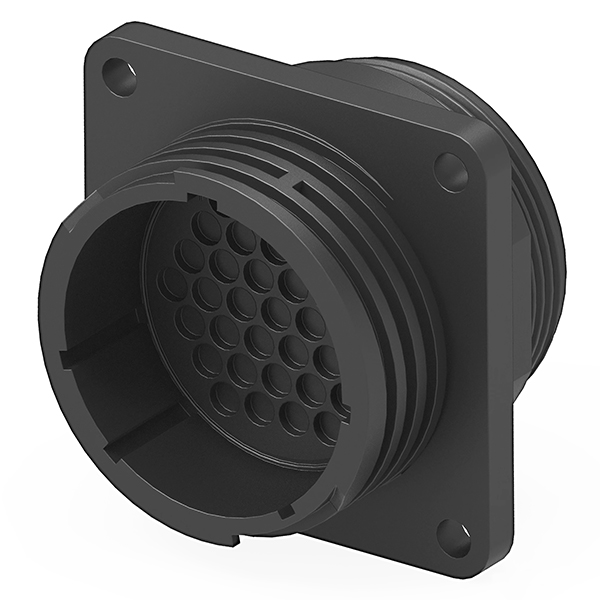

Series 1 CPC Connector Receptacle | Size 23 Shell, 37-Position, Panel Mounted, Thermoplastic

Series 1 CPC Connector Receptacle | Size 23 Shell, 37-Position, Panel Mounted, Thermoplastic

TE CONNECTIVITY

Call For Pricing
A tariff fee of $1.1925 EA may apply.
In stock
EDMO # 206151-1
MFR Part # 206151-1
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Series 1 CPC connectors are constructed with thermoplastic material providing a flammability rating of UL 94 V-0.

This circular connector receptacle (EDMO# 206151-1) features a size 23 shell size, 37 contact positions, and is a panel mounted receptacle. Thermoplastic construction.

Features

  • Panel mounting style CPC receptacle
  • Series 1 CPC circular connector
  • Uses Type III+, high current power, Type II and subminiature coax contacts

Also Purchased

Specifications

  • Height:
    44.45 mm
  • Diameter:
    36.53 mm
  • Connection Type:
    standard circular connector series 1
  • Flammability Rating:
    UL 94 V-0
  • Housing Material:
    thermoplastic
  • Mating Style:
    threaded
  • Mounting Angle:
    straight
  • Mounting Style:
    panel
  • Mounting Type:
    flanged with mounting holes
  • Number of Positions:
    37 position
  • Shell Size:
    23
  • Shell Style:
    receptacle
  • Thread Size:
    1-3/8-18

Related Products

Product Codes

  • Mfr Part No
    206151-1
  • CSA
    LR7189
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8538.90.8080
  • UL
    E28476
