AMPLIMITE HDP-20 Receptacle | Crimp, Snap-In Connector, Size 5 Shell, Size 20 Contacts, 50 Positions, Zinc Plated Steel

Product Description

AMPLIMITE High Density (HDP-20) Connectors are designed for rear insertion and extraction of size 20, precision formed contacts. The HDP-20 connectors feature steel shells and black polymer inserts with plastic contact retention tines.

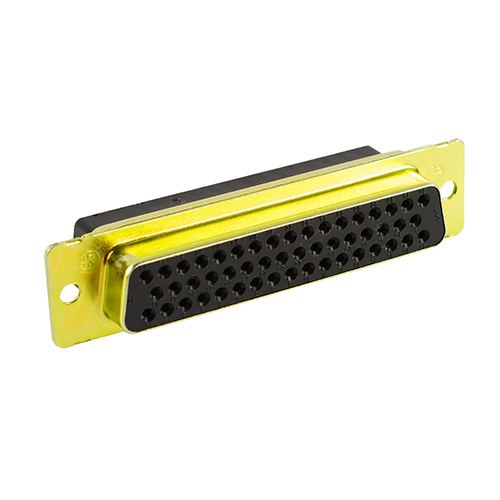

This AMPLIMITE HDP-20 connector (EDMO# 1658640-2) is a crimp termination receptacle with a size 5 shell and 50 contact positions. It accepts size 20 snap-in contacts and has a zinc plated steel shell.

Features

Shell sizes offer wide choice of contact positions—9, 15, 25, 37 and 50
Lower cost, commercial version of the military approved series
Tin or zinc plated shells, with or without grounding indents
Crimp snap-in contacts allows loading of only the number of contacts being used
Available with shielding hardware and shielding enclosure kits
Numerous cable clamps and mating hardware options
Low cost, high performance, precision-formed crimp contacts
Machine applied terminations assure highest production rates at lowest applied cost
Intermateable with any size 20 Subminiature D connector dimensionally complying with MIL-C-24308
