EL Instrument Light Bezel | 2-1/4 in, Blue/white lighting, No cutout

Product Description

UMA's instrument lighting system uses an electro-luminescent (EL) light strip, which eliminates the need for replacing light bulbs, and provides an ideal alternative for upgrading aircraft post lights or other indirect instrument lighting. The electro-luminescent strip is housed in a black injection-molded bezel and is ready for installation. The low current draw produces virtually no heat. These EL bezels require AC current for illumination and may require a small inverter to convert battery DC current to AC current.

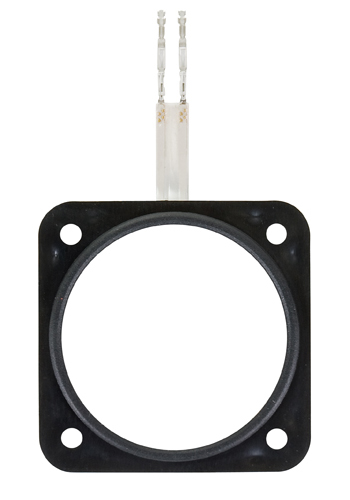

This EL light bezel (EDMO# 2-21-W) fits over 2-1/4 inch standard instruments, has no cutout and blue/white lighting.

Specifications

• Weight:
  0.5 oz
• Lighting Type:
  Electro-luminescent
• Temperature:
  -40°C to 90°C
• Useful Life:
  over 3,000 hr
• Operating Voltage:
  40 VAC – 220 VAC
• Operating Frequency:
  60 Hz – 3,000 Hz
• Spectral Output:
  500 nm for Aviation Green @ 400 Hz

Product Codes

• Mfr Part No
  2-21-W
• ECCN
  EAR99
• PMA
  PQ1000NE
• SCHEDULE B CODE
  9014.20.8040
• STC
  STC# SA01640NY
