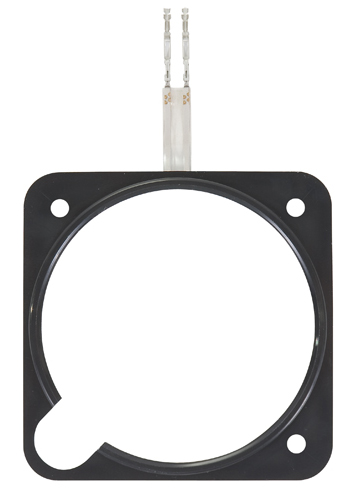

EL Instrument Light Bezel | 3-1/8 in, Blue/white lighting, Single cutout
Product Description
UMA's instrument lighting system uses an electro-luminescent (EL) light strip, which eliminates the need for replacing light bulbs, and provides an ideal alternative for upgrading aircraft post lights or other indirect instrument lighting. The electro-luminescent strip is housed in a black injection-molded bezel and is ready for installation. The low current draw produces virtually no heat. These EL bezels require AC current for illumination and may require a small inverter to convert battery DC current to AC current.
This EL light bezel (EDMO# 2-30-W) fits over 3-1/8 inch standard instruments, has a single cutout and blue/white lighting.
Features
- Installs easily into existing instruments in minutes
- Fits between the instrument display and the panel
- Will not burnout
- Lightweight, dimmable and bulbless design provides 360° lighting
Specifications
Weight:
0.5 oz
Lighting Type:
Electro-luminescent
Temperature:
-40°C to 90°C
Useful Life:
over 3,000 hr
Operating Voltage:
40 VAC – 220 VAC
Operating Frequency:
60 Hz – 3,000 Hz
Spectral Output:
500 nm for Aviation Green @ 400 Hz
Product Codes
- Mfr Part No:2-30-W
- EDMO #:2-30-W
- Brand:UMA INSTRUMENTS
- Category:Aircraft Lighting
