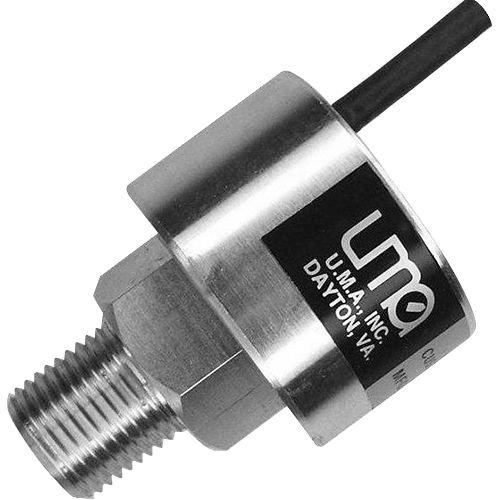

Differential Pressure Sender | 0 – 150 PSI

Product Description

TSO approved pressure sender units from UMA Instruments feature precise, solid state circuitry that offers excellent performance and value. They are available in gauge, differential, and absolute type sending units and compatible with avgas, jet fuel, engine oil, and many other fluids. Built-in voltage regulation allows compatibility with instruments that do not have precision output voltages.

This differential pressure sender unit (EDMO# T1EU150G) has a pressure range of 0 – 150 PSI and a maximum pressure rating of 580 PSI.

Specifications

• Weight:
  2.6 oz
• Length:
  2 in
• Diameter:
  1.5 in
• Pressure Range:
  0 – 150 PSI (T1EU70G)
• Power Requirement:
  9V – 16V
• Output:
  0.2V – 4.7V
• Sending Unit Type:
  Differential
• Pressure Fitting:
  1/8-inch 27 NPT
• Temperating:
  -40°C to 120°C
• Material:
  Aluminum
• Mounting Threads:
  5/8-inch 18
• Connection:
  3-wire connection
• Media Compatibility:
  AVGAS, Oil, Jet Fuel, Water

Product Codes

• Mfr Part No
  T1EU150G

Documentation

• UMA pressure sender drawing
