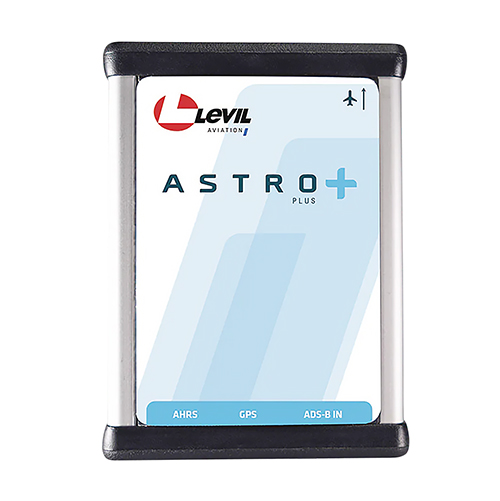

Astro+ Portable Dual-Band ADS-B Receiver | Includes Remote Antennas

Astro+ Portable Dual-Band ADS-B Receiver | Includes Remote Antennas

    LEVIL

    Call For Pricing
    Available to order
    EDMO # 108-01-02
    MFR Part # 108-01-02
    Need help placing an order? Call 800-235-3300 or Contact us

    Product Description

    The Astro+ combines a state-of-the-art aviation-grade AHRS technology, dual-band ADS-B Receiver, and an internal WAAS GPS for navigation inside one portable device. The Astro+ is capable of driving synthetic vision displays and provides the navigation information needed to turn a phone or tablet into a real glass panel.

    Features

    • Easily mounts anywhere in the aircraft: supply power and navigate
    • transfers and receives data over RS232 AUX port
    • Record your flight data and review it on CloudAhoy, Google Earth, Xplane, Flight Simulator, and Microsoft Excel
    • Displays altitude
    • Connect a GRT EIS 4000, 6000, or 9000 via the Astro+ AUX serial port and display engine data
    • Displays EFIS with altitude, heading bug setting, and ground speed
    • Transmit weather data wirelessly to your favorite navigation app
    • Display the traffic around you and where they are heading without having a cluttered background
    • Displays vertical speed indicator
    • Check your instrument performance and connections, such as, battery levels, GPS reception, and ADS-B in receptions

    Also Purchased

    Specifications

    • Specification
      AHRS: 360-degree pitch and bank operations GPS Independent Attitude 500°/sec max turn rates 8G’s max rating Output: Roll, pitch, magnetic heading, slip indicator, rate of turn, G meter, Pressure altitude.
    • Internal Battery:
      Operating Time after flight (if fully charged) <= 4 hr
    • Charging Requirements:
      One amp at 5V
    • Wi-Fi
      : 2.4 Ghz Android and iOS compatible Support up to 6 devices connected simultaneously (UDP broadcast) Supports multiple protocols:GDL90 (default), iLevel proprietary, NMEA
    • GPS
      : Support WAAS Cold start < 60 sec. Typ. (open sky) 1 Hz output (5 Hz optional)
    • ADS-B in (978/1090 MHz):
      Receives regional and continental NEXRAD reports broadcasted by ADS-B towers within range: (Regional every 2.5 min. /Continental every 15 min.) Receives “GROUND TO AIR” traffic. (re-broadcast of traffic by ADS-B towers nearby) Receives “AIR TO AIR” traffic reports from other aircraft operating 978/1090 MHz transmitters: (978 MHz UAT ADS-B out and Mode-ES transponders with extended squitter)

    Product Codes

    • Mfr Part No
      108-01-02
    • SCHEDULE B CODE
      9014.20.8040
