AF8 Crimp Tool Turret Head

Product Description

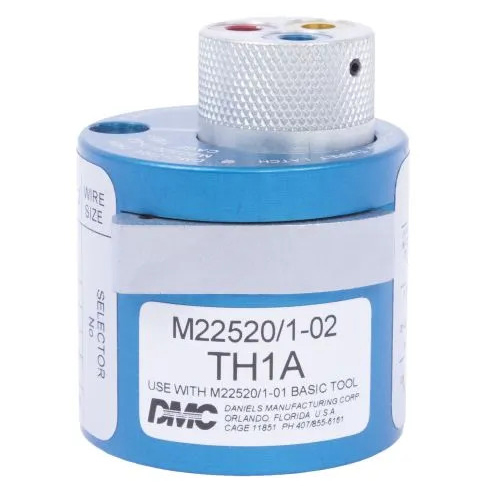

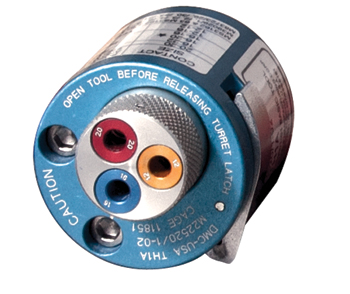

The M22520/1-02 (EDMO# TH1A) turret head is used with the M22520/1-01 (AF8) tool frame and adapts the tool frame to a particular application. The data plate on each turret head designates which contacts the turret accommodates and suggests a selector depth setting for the wire size being used.

Specifications

• Weight:
  0.25 lbs
• Dimensions:
  2.00 x 1.50 in
• Contact Sizes Accepted:
  Size 20, Size 16, Size 12
• Crimp Applications:
  Machined Contacts
• Crimp Tool Type:
  Positioners
• Qualifications:
  MIL-DTL-22520/1, AS22520/1

Product Codes

• Mfr Part No
  TH1A
• MIL SPEC
  M22520/1-02
• ECCN
  EAR99
• MIL SPEC
  M22520/1-02
• NSN
  5120-01-335-8834
• SCHEDULE B CODE
  8203.20.6060
