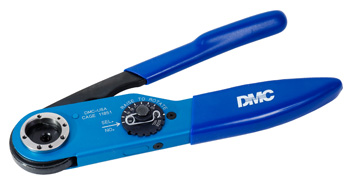

AF8 Adjustable Indent Crimp Tool | M22520/1-01

Product Description

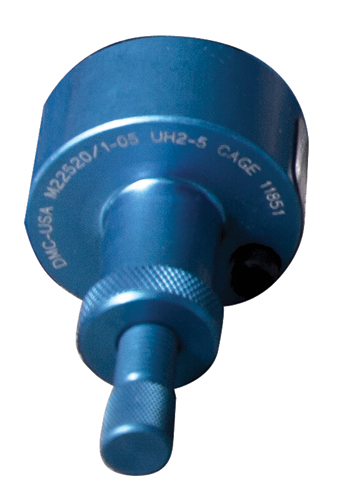

The AF8 crimp tool is qualified to MIL-DTL-22520/1 and is compatible with the wire range of 12 through 26 AWG. With over a thousand available turret heads, the tool frame can be adapted to very specific military or proprietary contact/wire combinations. The AF8 provides an 8-impression crimp, assuring maximum tensile strength with almost every closed barrel contact. Tool requires a compatible turret head and positioner.

Specifications

• Weight:
  1.25 lb
• Dimensions:
  9.75 x 2.5 x 1.25 in
• Wire Range:
  12 - 26 AWG

Product Codes

• Mfr Part No
  AF8
• ECCN
  EAR99
• MIL SPEC
  M22520/1-01
• NSN
  5120-01-335-8571
• SCHEDULE B CODE
  8203.20.6060

Documentation

• AF8 Brochure
