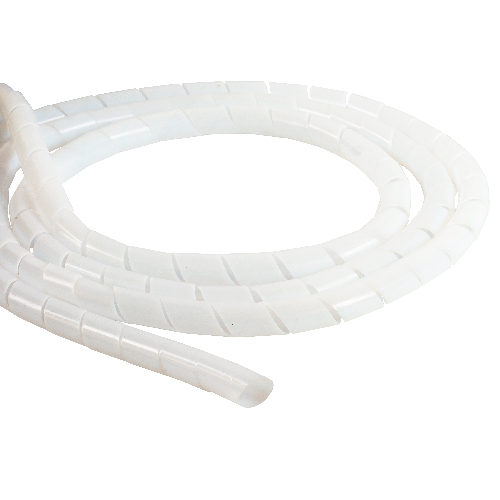

ProTECT® SWT Teflon Spiral Wrap | Natural, 3/4 Inch Diameter

Product Description

ProTECT® Spiral Wrap tubing provides a solid grip with its torsional cut and rigid profile. It retains its strength under repeated flexing and bending and follows wire paths easily, resulting in tidy, free-running cable bundles. Spiral wrap is also easy to remove and re-apply when troubleshooting is necessary. SWT Teflon Spiral Wrap is primarily used in high temperature applications, has an extremely low operating temperature, and is not affected by organic solvents or acids.


This Teflon Spiral Wrap (EDMO# SWT-3/4) has a natural color and a 3/4 inch diameter. Sold in 25 ft lengths and is priced per 100 ft.

Specifications

• Nominal outside diameter:
  0.750 in (19.05 mm)
• Nominal Wall Thickness:
  0.040 in (1.02 mm)
• Nominal Pitch:
  0.875 in (22.23 mm)
• Maximum Bundle Size:
  4.0 in (101.6 mm)

Product Codes

• Mfr Part No
  SWT-3/4
• MIL SPEC
  A-A-59602, TY 3; MIL-T-47287A, TY 1; MIL-I-22129B; AMS 3651B; AMS 3653
• ECCN
  EAR99
• MIL SPEC
  A-A-59602, TY 3; MIL-T-47287A, TY 1; MIL-I-22129B; AMS 3651B; AMS 3653
• SCHEDULE B CODE
  3904.69.5000

Documentation

• ProTECT® spiral wrap datasheet
