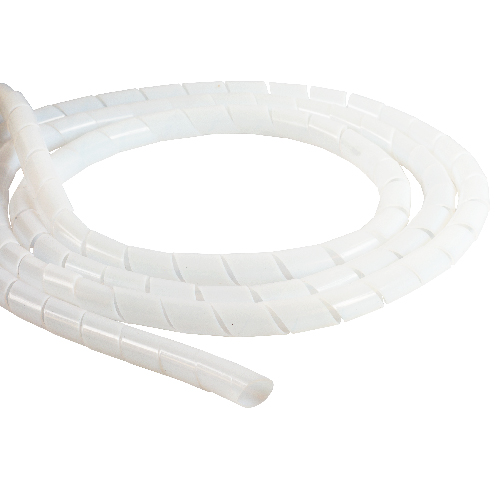

ProTECT® SWT Teflon Spiral Wrap | Natural, 1 Inch Diameter
Product Description
ProTECT®Spiral Wrap tubing provides a solid grip with its torsional cut and rigid profile. It retains its strength under repeated flexing and bending and follows wire paths easily, resulting in tidy, free-running cable bundles. Spiral wrap is also easy to remove and re-apply when troubleshooting is necessary. SWT Teflon Spiral Wrap is primarily used in high temperature applications, has an extremely low operating temperature, and is not affected by organic solvents or acids.
This Teflon Spiral Wrap (EDMO# SWT-1) has a natural color and a 1 inch diameter. Sold in 25 ft lengths and is priced per 100 ft.
Features
- Versatile low cost material
- Ultra-violet resistant
- Extremely low operating temperature
- Higher temperature rating than polyethylene
- Not affected by organic solvents or acid
Specifications
Nominal outside diameter:
1.000 in (25.40 mm)
Nominal Wall Thickness:
0.040 in (1.02 mm)
Nominal Pitch:
1.000 in (24.50 mm)
Maximum Bundle Size:
6.0 in (152.4 mm)
Product Codes
- Mfr Part No:3673700
- EDMO #:SWT-1
- Brand:ICO RALLY
- Category:Wire, Cable & Accessories
- ECCN:EAR99
- MIL SPEC:A-A-59602, TY 3; MIL-T-47287A, TY 1; MIL-I-22129B; AMS 3651B; AMS 3653
- MIL SPEC:A-A-59602, TY 3; MIL-T-47287A, TY 1; MIL-I-22129B; AMS 3651B; AMS 3653
- MIL SPEC:A-A-59602, TY 3; MIL-T-47287A, TY 1; MIL-I-22129B; AMS 3651B; AMS 3653
- SCHEDULE B CODE:3904695000
