P7 Series Pushbutton Switch | 3A, 115VAC, 28VDC

Product Description

The P7 series incorporates a double break design in a significantly smaller package. This subminiature switch allows the switch density for control grips and panels. The long-life snap-action design is protected from the environment by a silicon rubber boot, operating on a “rolling sleeve” principle that gives long sealed life and smooth operation. The P7 series is designed to meet the requirements of MIL-PRF-8805 including low level switching (10mA @ 30mV) with power switching up to 5 amps at 28VDC as well.

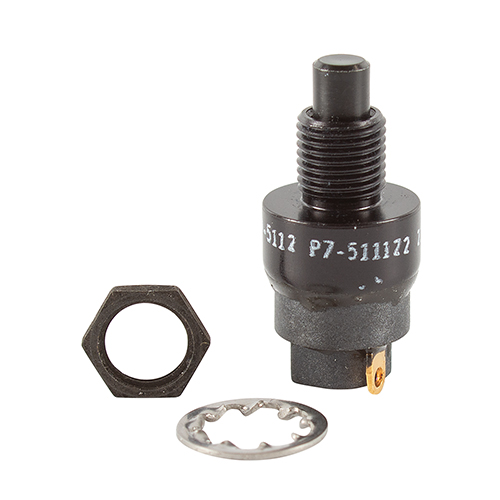

This P7 series push button switch (EDMO# P7-511122) is black and operates on a 3A, 115VAC 28 VDC current.

Specifications

• Termination Style:
  Solder/Military/Short
• Circuit Form:
  N.O.
• Contact Rating:
  Std.
• Bezel Color/Button Diameter:
  Black/Std.
• Button Color:
  Black
• Electrical Life:
  25,000 cycles
• Mechanical Life:
  1,000,000 cycles
• Seal:
  IP64 and MIL-PRF-8805 Design 2 or IP68S and MIL-PRF-8805 Design 3
• Operating Temp Range:
  -55°C to 85°C
• Operating Force:
  1.7 ± 0.5 lb
• Total Travel:
  0.080 in max.
• Over-travel:
  0.010 in min.
• MATERIALS:
  Case: Anodized aluminum alloy
• Button:
  Thermoplastic
• Terminals:
  Brass with gold plate over silver plate
• Terminal Hardware:
  None provided
• Mounting Hardware:
  Hex nut, lock washer and panel gasket when applicable

Product Codes

• Mfr Part No
  P7-511122
• SCHEDULE B CODE
  8536.50.9031
