NavPro 1200F | 12in TouchScreen, Internal GPS Antenna, Wifi, Polaris Chart Card

Si-Tex

Call For Pricing

In stock

EDMO # NP1200WF

MFR Part # NavPro 1200 w/Wi-Fi

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The NavPro 1200 multi-function display is easy to install on almost any vessels. Using built-in wifi,
installation is simple when connecting to an optional high-resolution compact radome antenna. This NavPro unit is an affordable MFD capable of delivering excellent target resolution as well as professional grade features when wirelessly synced to SI-TEX's MDS-12 network radome. Radar targets can be layered Polaris charts for providing enhanced situational awareness and safety — even in the most challenging conditions.

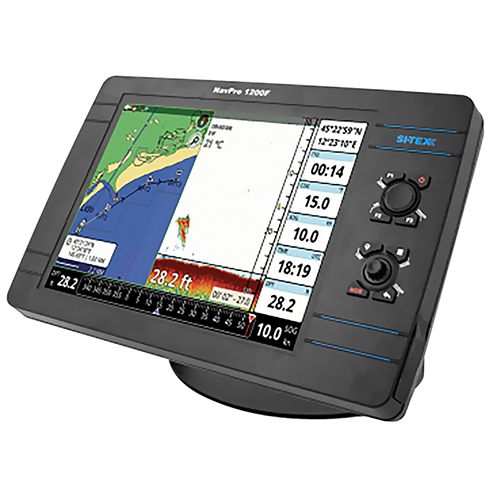

This NavPro 1200F (EDMO# NP1200WF) includes a 12-inch touch screen GPS/chart plotter, Internal GPS antenna, wifi, and includes Polaris chart card.

Features

12-inch high resolution, hybrid touch, screen display
Heavy-duty, yoke mount for bulkhead or overhead mounting
NMEA-0183 & NMEA2000 interfacing
WIFI interface
Automatic software updates when in WIFI coverage areas
Captain Cloud automatically backs up all User Data to a free cloud based data backup service for waypoints, marks, events, and track memories when in WIFI coverage areas
Mirror screen capability via bluetooth connection allows user to download mirror app to an Android based smartphone to view and control the NavPro 900 from smartphone
Optional dedicated remote control available
Easy flush mounting without any special it required
New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs (NavPro-900F version)
CHIRP Sounder has scroll back screen memory allowing users to quickly scroll back and pickoff locations to mark on Nav Chart
Uses the popular AIrmar CHIRP transducers with TX ID will automatically setup the sounder transducer interconnect
Adapters available to allow the unit to be installed on older non-CHIRP transducers, such as 50/200 kHz dual frequency transducers and 120kHz single frequency transducers
Internal high-resolution 18 Hz, 72-channel GPS receiver & antenna
Improved user interface allows for easy operation and navigation with full AIS integration when interfaced to an AIS unit

Specifications

Dimensions:

15.3 x 10.9 x 5.8 in LCD Display Size: 12.0 in Display Brightness: 1250 NITS Display Resolution: 1024 x 768 Touch Screen: capacitive multi-touch Keyboard Backlight: yes Operating Voltage: 10 VDC — 35 VDC GPS Receiver: built-in high resolution 18 Hz, 72 channel GPS/GLONASS External GPS: optional via 6-pin connector Network Connections: NMEA-2000 (optional cable required) Dual NMEA-0183 input & output ports WIFI Connection: yes Bluetooth Connection: yes Waterproof Rating: IPX6 Operating Temperature Range: -10°C to 60°C
