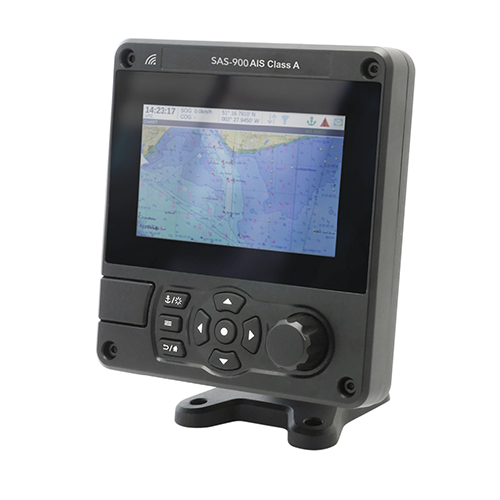

SAS-900 Class A AIS Transceiver

SAS-900

Si-Tex

CALL FOR PRICING
In Stock
EDMO#SAS-900
MFR#SAS-900

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The SAS-900 is an advanced SOLAS and Inland-Waterway certified Class A Transceiver, engineered for unmatched performance and reliability even in harsh environments.

With its IPx7 weatherproofing, integrated shock absorption, and vibration protection, the SAS-900 delivers continuous, long-term operation. Its large high-definition color screen provides a detailed chart overlay of AIS targets and innovative MOB features for optimal maritime situational awareness.

Fourth-generation AIS technology ensures the clearest, most robust transmission and reception of AIS data, giving you total confidence during navigation and collision avoidance. The easy-to-use interface allows for intuitive operation while the rugged, marine-grade design withstands the punishment of rough seas.

Features

  • Internationally certified SOLAS, MED, FCC, Inland Waterway, Industry Canada
  • IPx6 & IPx7 water and weatherproof
  • Inter-operable with all other bridge systems
  • Uses Optional High performance C-MAP Max Electronic Chart
  • Multi-lingual, intuitive user interface
  • MOB & SART alert and tracking
  • Integrated Wi-Fi
  • Fully integrated device
  • System
  • Pilot plug interface
  • NMEA0183 & 2000

Specifications

Weight:
1.5 kg

Dimensions:
152 x 165 x 111 mm

Power Supply:
12 to 24VDC

Power Consumption:
< 12W

CONNECTORS:

VHF Antenna Connector:
SO-239 / UHF

GNSS Antenna Connector:
TNC

Power:
two-pin connector (cable provided)

Serial Interfaces and Alarm Relay:
18-pin connector (cable provided)

Serial Inputs:
14-pin connector (cable provided)

NMEA2000:
NMEA 2000 Micro connector

VHF TRANSCEIVER:

Transmitter:
1

Receiver:
3

Frequency:
156.025MHZ to 162.025MHz

Output Power:
1W or 12.5W (automatic)

Channel Bandwidth:
25kHz

Channel Step:
25kHz

Modulation Modes:
GMSK-TDMA

Bit Rate:
9600bits/sec

Receiver Sensitivity:
-107dBm @ 20% PER

GNSS RECEIVER AND ANTENNA:

Channels:
72

GNSS systems:
Support parallel dual mode operation from GPS and GLONASS

IEC61108-1: Compliant

IEC61108-2: Compliant

GNSS antenna:
Supplied

USER INTERFACE:

5-inch, 800 x 480 full color LCD display
Rotary encoder for selection and entry
Four menu keys and four direction keys
Micro SD card for software updates and charts

ENVIRONMENTAL:

Waterproof:
IPx6 & IPx7 rated for water ingress

IEC 60945:
‘Protected’ category
Operating Temperature
-15°C to 55°C

Product Codes

  • Mfr Part No:SAS-900
  • EDMO #:SAS-900
  • Brand:Si-Tex
