N4-15 Low Drag Balanced Loop VOR/LOC Antenna | 108–118MHz, Two TNC Output Connectors, 8-hole Mount, White

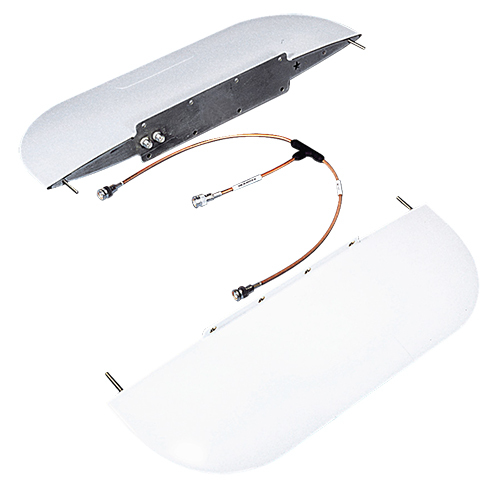

N4-15 VOR/LOC Balanced Loop Blade Antenna | 108-118MHz, TNC, Two Output

HARRIS CORP

Call For Pricing

Available to order

EDMO # DM N4-15

MFR Part # N4-15

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The N4-15 VOR/LOC antenna has a low drag balanced loop design for use on high performance aircraft where aerodynamic drag must be kept to a minimum. The N4-15 antenna provides increased range and reduced barring error. Rugged construction provides erosion resistance; a flush fiberglass housing improves aerodynamics; and a foam-filled assembly ensures maximum durability.

The N4-15 is designed for new aircraft installations, but can also be installed as a retrofit when dual-antenna capability is required.

This VOR/LOC balance loop blade antenna (EDMO# DM N4-15) has two TNC output connectors, an eight-hole mounting pattern, two-grounding studs, and a white finish.

Features

Low-drag balanced loop design
Low aerodynamic drag
Metal construction with foam-filled assembly offers lasting durability
Flush fiberglass housing improves aerodynamic properties

Specifications

Weight:

5.5 lb
Connector:

Two TNC Output Connectors
Frequency Range:

108 MHz – 118 MHz
VSWR:

5:1, max
Impedance:

50Ω
Polarization:

horizontal
Radiation Pattern:

hemispherical
DC Resistance:

Omni-directional in the azimuth plane, approx. cos q in the vertical plane
Power handling:

receive only
Approvals:

FAA TSO C40a
