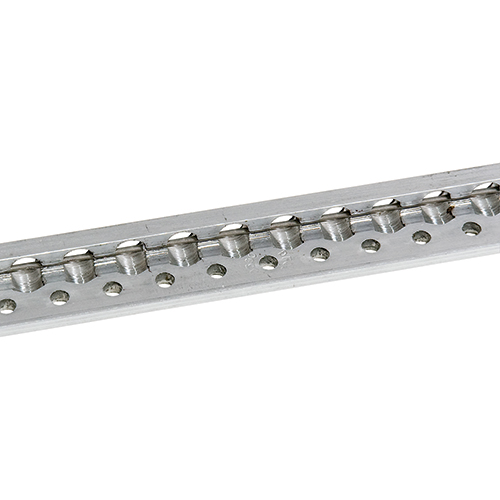

DZUS Rail | Right Angle Quarter Turn Fastener, 3 ft

Product Description

DZUS Rail receptacle strips act as a supporting frame for the panels or removable parts to be fastened with continuous holes for stud engagement and rivet mounting on 3/8” (9.53 mm) centers. These strips are riveted to a support member, and the stud panel rests against the strip face that has the stud holes. The strips are aluminum alloy with a continuous rigid stainless-steel wire staked across the underside of the stud holes. The fastened panel rests on the strip, and its captive quarter-turn studs engage the rigid wire.

This DZUS Rail (EDMO# D5-3) is 3 feet long and has right angle quarter turn fasteners.

Specifications

• Length:
  3 ft
• Fastener Type:
  Right Angle, Quarter Turn

Product Codes

• Mfr Part No
  D5-PR35
• ECCN
  EAR99
• SCHEDULE B CODE
  8102.95.0000
