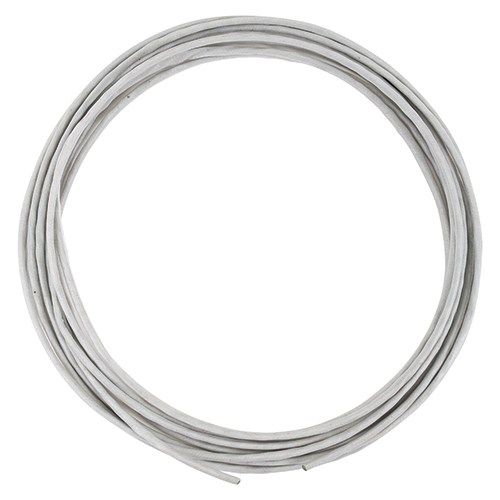

ARINC 646 CAT 5 Data Bus Ethernet Cable
Product Description
ECS data bus cables are designed to meet, or exceed, burn requirements as set forth in Federal Aviation Regulations 14 CFR Part 25.869(a)(4) Amdt 25-113, Appendix F Part I(a)(3). They are manufactured with materials which, when subjected to flames or high temperatures, will not outgas deadly hydrogen chloride produced by conventional PVC cables.
Features
- 4 conductor
- 2 twisted pair
- White/blue, Blue/white
- White/orange, Orange/white
- Dual shielding
- Hight temp outer insulation
Specifications
Weight:
3.0 lb/100 ft nominal
Outer Diameter:
0.234 in. nominal
Bend Radius:
1.2 in. nominal
Impedance:
100Ω nominal
Capacitance:
12.4 pF/ft maximum
Velocity of Propagation:
78% nominal
Skew:
12.8 ns/100ft BUS
Attenuation:
10 MHz 2.1 dB/100 ft nominal
Conductors:
4 (2 Twisted Pairs: Conductors: 24 AWG tin plated copper Insulation: High temperature flouropolymer)
Color Code:
Pair 1- White/Blue, Blue/White
Pair 2 - White/Orange, Orange/White
Shield 1:
Aluminum/Mylar foil
Shield 2:
38 AWG tin plated copper braid
Jacket:
White high temperature flouropolymer (laser markable)
Product Codes
- Mfr Part No:392404
- EDMO #:392404
- Brand:EDMO DISTRIBUTORS, INC
- Category:Wire, Cable & Accessories
- ECCN:EAR99
- SCHEDULE B CODE:8544.19.0000
