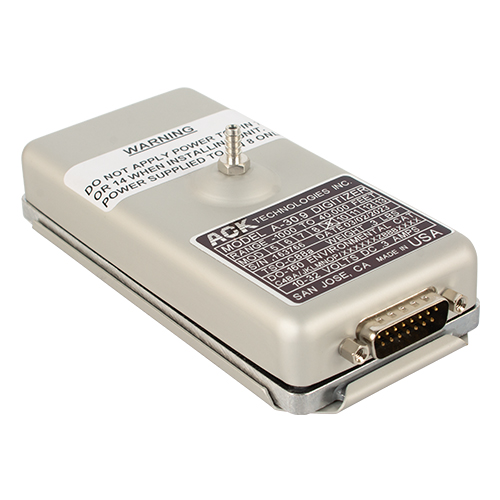

A-30.9 Altitude Encoder | Two RS 232 Outputs

ACK TECHNOLOGIES

Call For Pricing

In stock

EDMO # A-30.9

MFR Part # A-30.9

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The A-30 encoders work with all modern mode A/C and mode S transponders. The mod 9 configuration reports to 42,000 feet and provides both parallel grey codes and two RS 232 outputs which are jumper selectable in the most popular formats. The RS 232 altitude reporting is jumper selectable in 10 or 100 foot increments. It is plug compatible with all earlier mod 1 through 4, and mod 8 encoders with serial numbers 2,400 through 120,499.

This altitiude encoder (mod 9) kit (EDMO# A-30.9) includes a quick release mounting tray, 4 color coded foot harness with prewired jack, static line fittings, installation manual.

Features

Provides ADS-B RS 232 attitude data
(2) RS 232 outputs
10 ft resolution
Gray code to 42,000 ft

Also Purchased

Specifications

Weight:

5.1 oz (144 grams)
Dimensions:

6 x 2.65 x 1.3 in
Range:

MOD 5: –950 to 30,750 ft MOD 9: –950 to 42,000 ft
Accuracy:

±20 ft, typical ±50 ft, maximum
Operating Voltage:

10 VDC to 32 VDC Operating Current: 160 mA, typical Operating Temp: -4°F to 131°F (-20°C to 55°C)
Warm-up Current Draw:

14 VDC @ 160 mA 28 VDC @ 220 mA Warm-up Time: 70°F ambient 60 seconds 0°F ambient 210 seconds RS 232 10 ft or 100 ft
Altitude Resolution:

Gray code (parallel) output 100 ft
Approvals:

FAA TSO C-88a German LBA 10.221/4
