E-04 ELT Complete System

Product Description

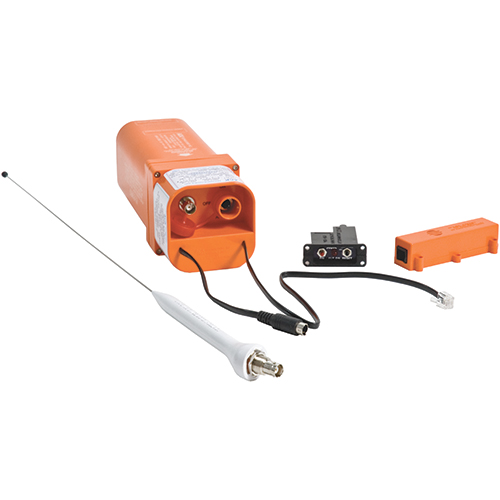

The E-04 is a 406 MHz/121.5 MHz ELT intended for use in general and commercial aviation and is a direct replacement for the E-01 ELT. This ELT fits the E-01 mounting trays, uses the same remote control panel indicator, and the E-04 external antenna can use the preexisting E-01 antenna mounting and wiring installation. The E-04 activates in the event of a crash and transmits a homing signal on 121.5 MHz for 48 hours while simultaneously transmitting a distress signal on 406 MHz to the Cospas-Sarsat system for up to 24 hours. Additionally, this unit can be interfaced with an aircrafts GPS system and is capable of accepting GPS position input data from several different devices. GPS information can then be sent to search and rescue, which results in drastically reduced search times. When activated, the E-04 provides an aural alert with a simple plug-in alert indicator.

Specifications

• Weight:
  ELT and battery pack: 1.6 lb (0.73 kg) ELT tray and straps: 0.2 lb (0.09 kg) remote control (RCPI): 1.1 oz (31 g) audio alert indicator: 1.5 oz (43 g)
• Dimensions:
  7.75 x 2.85 x 2.85 in (192 x 72 x 72 mm)
• Frequency:
  121.5 MHz and 406 MHz
• Modulation:
  406 MHz ±2 kHz Bi-Phase L (16KOG1D) 121.5 MHz ±6 kHz AM (3K20A3N)
• Specification
  Swept downward: 1,400 to 400 Hz Repetition Rate: 3 Hz Modulation Factor ≥90% Duty Cycle: ≥45%
• Power at Terminal (50Ω load):
  121.5 MHz20.7 dBm 50 hrs @ -20°C 406 MHz 37.3 dBm 24.5 hrs @ -20°C Standby Current Armed Mode: 26 uA Peak Current: 406 MHz burst 1.5-2 A Current 121.5 MHz Operation: 75 mA
• Specification
  Peak EIRP (with E-04.8 whip antenna and E-04.10.4 coax cable): 121.5 MHz +23 dBm 200mW, 406 MHz +39.79 dBm 12.7 W
• Operating Temperature:
  -20°C to 55°C, operating -55°C to 85°C, storage
• Crash Activation:
  4.5 FpS ±0.5 FpS
• ELT Approvals:
  FAA/Transport Canada TSO C-126b TSO C-91a ETSO 2C126 ETSO2C91a COSPAS/SARSAT T.001 T.007 Industry Canada 1863A-E04AF Brazil ANAC
• Type:
  TSO-126, C-91a AF
• Antenna (E-04.8):
• Weight:
  2.1 oz (60 g)
• Dimensions:
  20.625 in (524 mm), swept 20°
• Impedance:
  50Ω nominal
• Specification
  VSWR @ 121.5 MHz ≤2.5:1 VSWR @ 406 MHz ≤1.5:1
• Specification
  260 knots @ sea level maximum
• BATTERY (E-04.0):
• Battery Type:
  Li-SO2, non-flammable electrolyte
• Battery Voltage:
  12V
• Battery Operating Temperature:
  -20°C to 55°C
• Battery Amp Hour Rating:
  7.75 Ah
• Non-rechargeable Lithium Content:
  9.8 g
• Max Discharge Rate:
  2.5 Amps
• Battery Life:
  5 yrs (when used with model E-04 ELT)
• Battery Approvals:
  FAA/Transport Canada TSO C-142a ETSO C-142a Brazil ANAC

Product Codes

• Mfr Part No
  E-04
• ECCN
  7A994
• ETSO
  2C91a, 2C126,C142a
• PROAPP
  PT0880NM
• PROG REQ
  ACKE-04programsheet
• SCHEDULE B CODE
  8525.50.8020
• TSO
  C91a, C126b, C142a
• UN ID#
  3091, Lithium Metal Batteries contained in equipment
