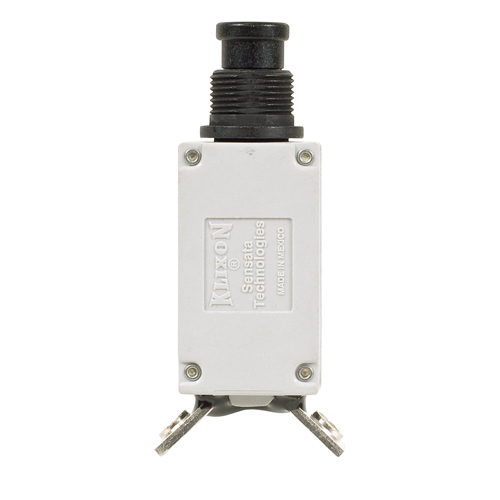

7274-11 Series Circuit Breaker | 10 Amp Rating

Select an option

KLIXON

Call For Pricing

In stock

EDMO # 7274-11-10

MFR Part # 7274-11-10

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Klixon® 7274-11 series circuit breakers are small, lightweight, and low amperage devices specifically designed to protect aircraft and aerospace cables, and components. The 7274 features a trip–free, indicating reset button and is available in standard ratings from ½ to 20 amps.

Includes hardware.

Features

This 7274-11 series circuit breaker (EDMO# 7274-11-10) is rated for 10 amps.
Single-Phase, Non-Compensated
Uses minimum space
Light weight
Trip-free design
MIL-C-5809 qualified
Low amp rating
High vibration resistance
Designed to protect military airborne vehicles and equipment

Also Purchased

Specifications

Weight:

33g, maximum
Specification

Current Rating: 10 amps
Vibrations:

10G, minimum, 50 to 500 Hz
Mechanical Shock:

35G
Acceleration:

10G
Interrupt Current:

0.50A – 5A: unlimited @ 28 VDC 7.50A – 15A: 2,000A @ 28 VDC 0.50A – 1.50A: unlimited @ 120 VAC, 400 Hz 2A – 5A: 800A @ 120 VAC, 400 Hz 7.50A – 20A: 500A @ 120 VAC, 400 Hz
Endurance:

2,500 cycles: 120 VAC, 400 Hz inductive 5,000 cycles: 120 VAC, 400 Hz resistive 2,500 cycles: 30 VDC inductive 5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load
Voltage Drop (at nominal rated current):

0.28V @ 10A
