PIDG Quick Disconnect Tab | Series 250, 16 – 14 AWG, Male Straight Mount

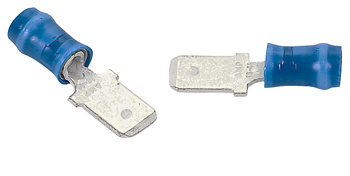

RECEPTACLE/Male, insulated, blue, PIDG series. Stud/tab size: 6.35 mm X .81 mm. For use with 16-14 gauge wire.

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 66024-2
MFR Part # 660242
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The series 250 miniature FASTON terminal connectors feature a low insertion force in applications where there is not enough space for traditional, full-sized straight receptacle. These quick connectors have a tin-plated brass construction for a continuous current rating up to seven amps and 14 amp intermittent current.


This PIDG quick disconnect tab (EDMO# 66024-2) has a straight connector and fits 16 – 14 AWG wire.

Features

  • Fits within confined spaces
  • Low insertion force provides increased comfort
  • Meets UL 310 & CSA C22.2 No. 153 requirements

Also Purchased

Specifications

  • Dimensions:
    25.17 x 7.87 mm
  • Color:
    blue
  • Contact Material:
    tin-plated copper
  • Insulation:
    vinyl
  • Mounting Angle:
    straight
  • Mounting Style:
    push in
  • Product Type:
    quick disconnect terminal
  • Product Series:
    250 Faston
  • Stud / Tab Size:
    6.35 x 0.81 mm
  • Termination Style:
    crimp
  • Wire Gauge:
    16 – 14 AWG

Related Products

Product Codes

  • Mfr Part No
    660242
  • CSA
    LR7189
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.90.4000
  • UL
    YES
